Diesel Data
: Automotive Repair
Home
>>
Chevy Truck
>>
1986
>>
C 20 P/U 2WD V6-262 4.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Engine Compartment Wiring Circuit
>>
Federal
Federal

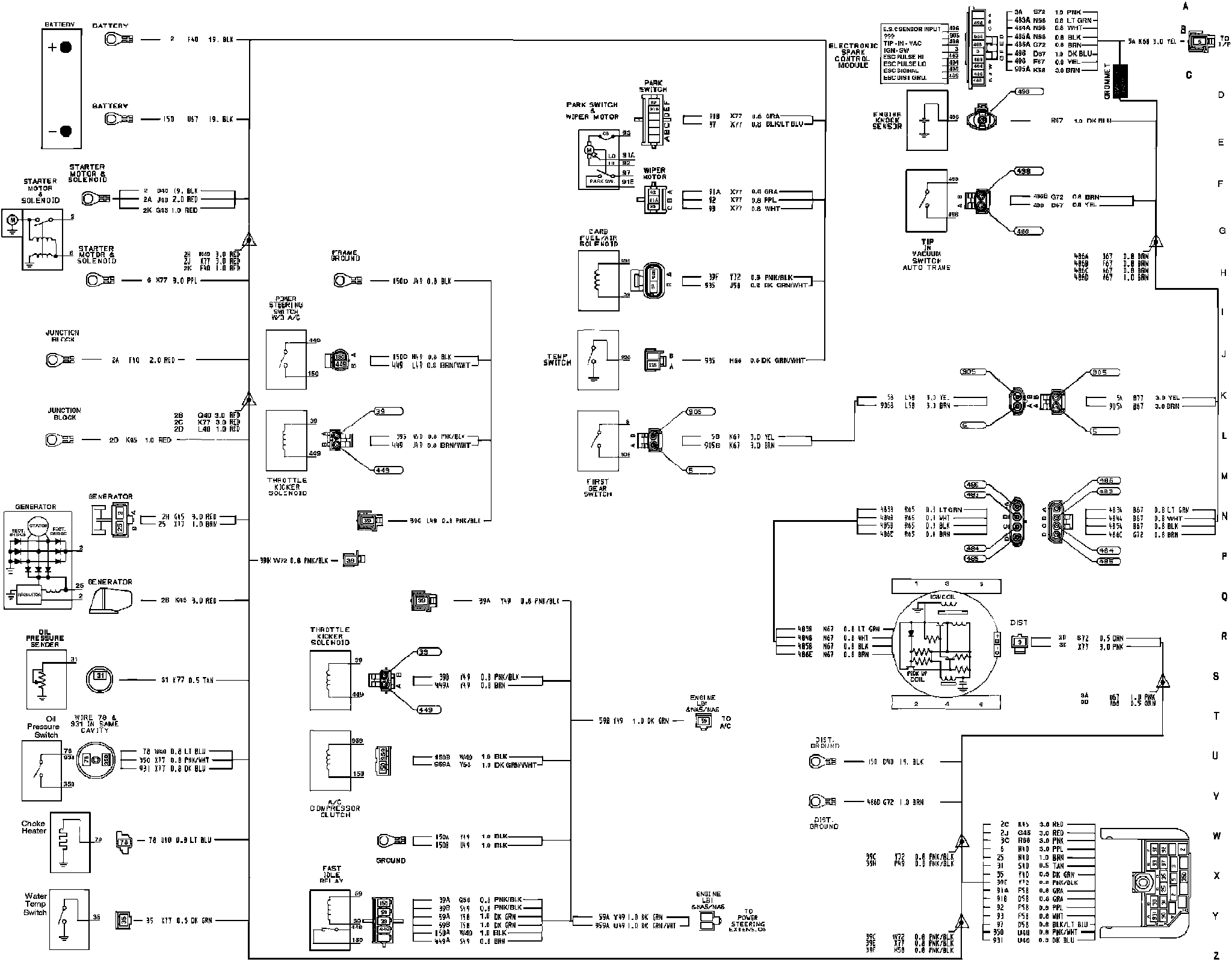

Engine Compartment Wiring Circuit:
