Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Instrument Panel Illumination
Instrument Panel Illumination

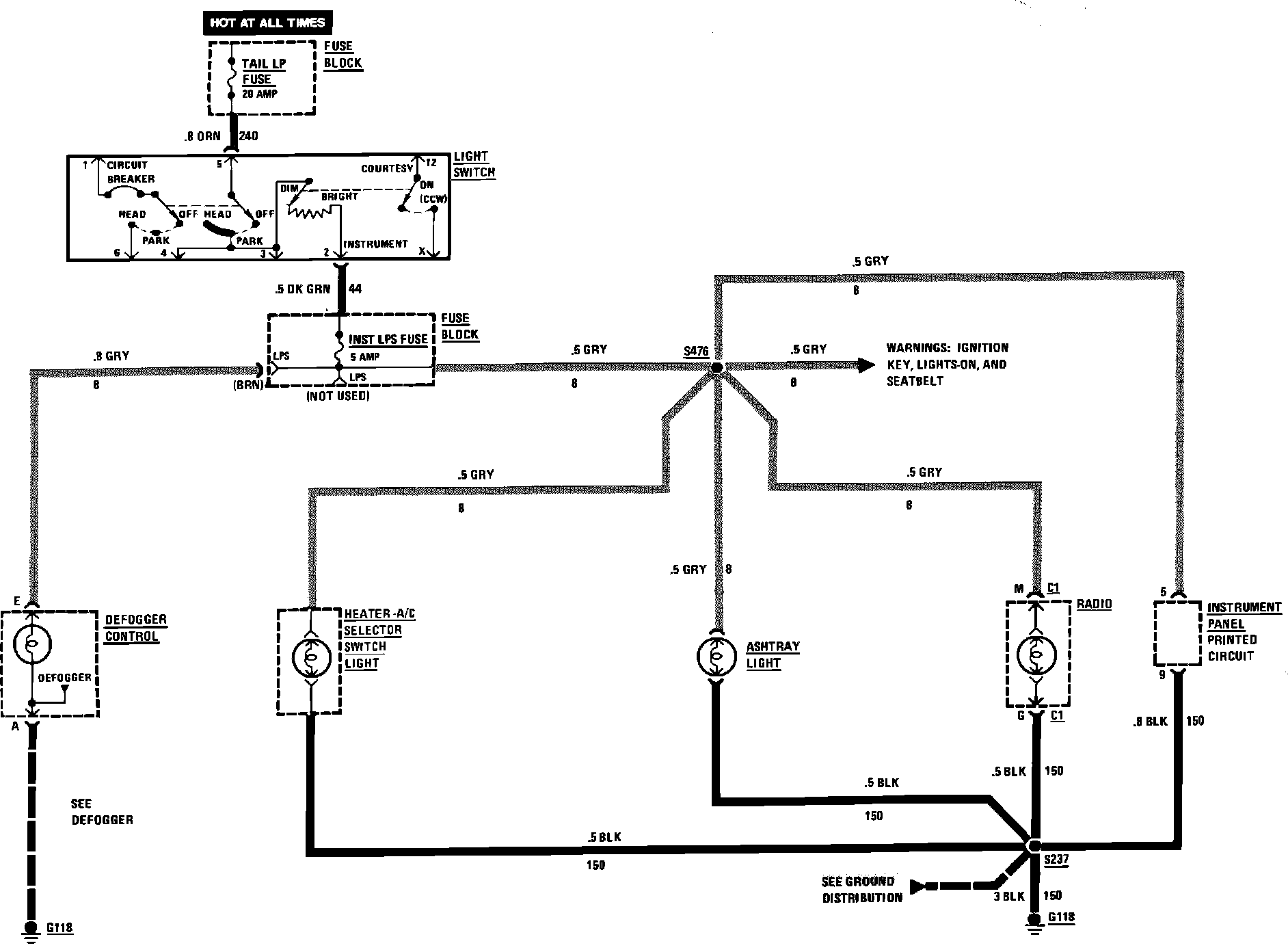

Fig. 139 Instrument Panel Illumination Wiring Circuit.:
Instrument Panel Illumination Wiring Circuit:
