With Stereo System

Radio Wiring Circuit (With Stereo System):

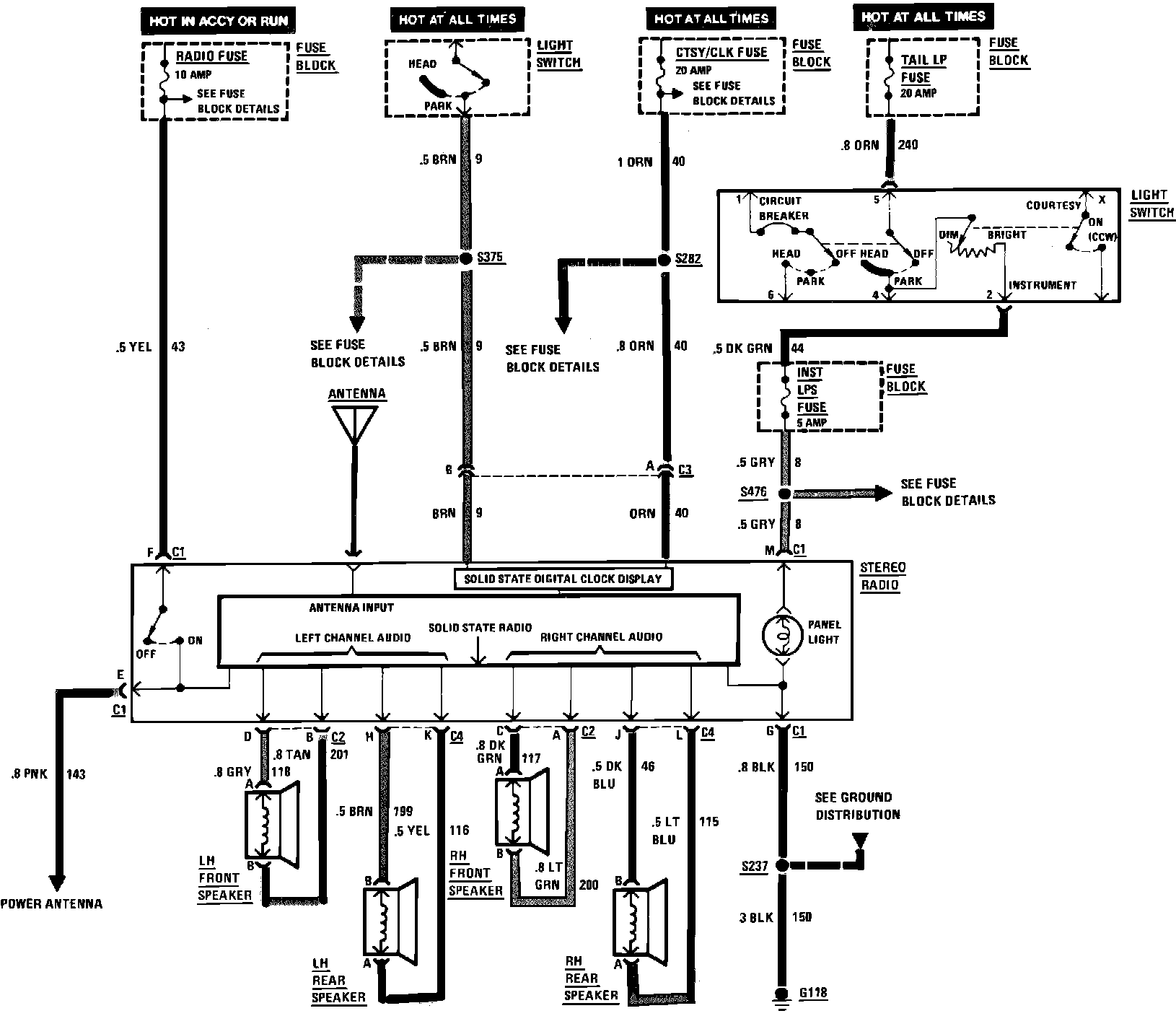

Fig. 198 Radio Wiring Circuit. With Stereo System:
