System Diagram
System Diagram
Charging System & Starter Wiring Circuit:

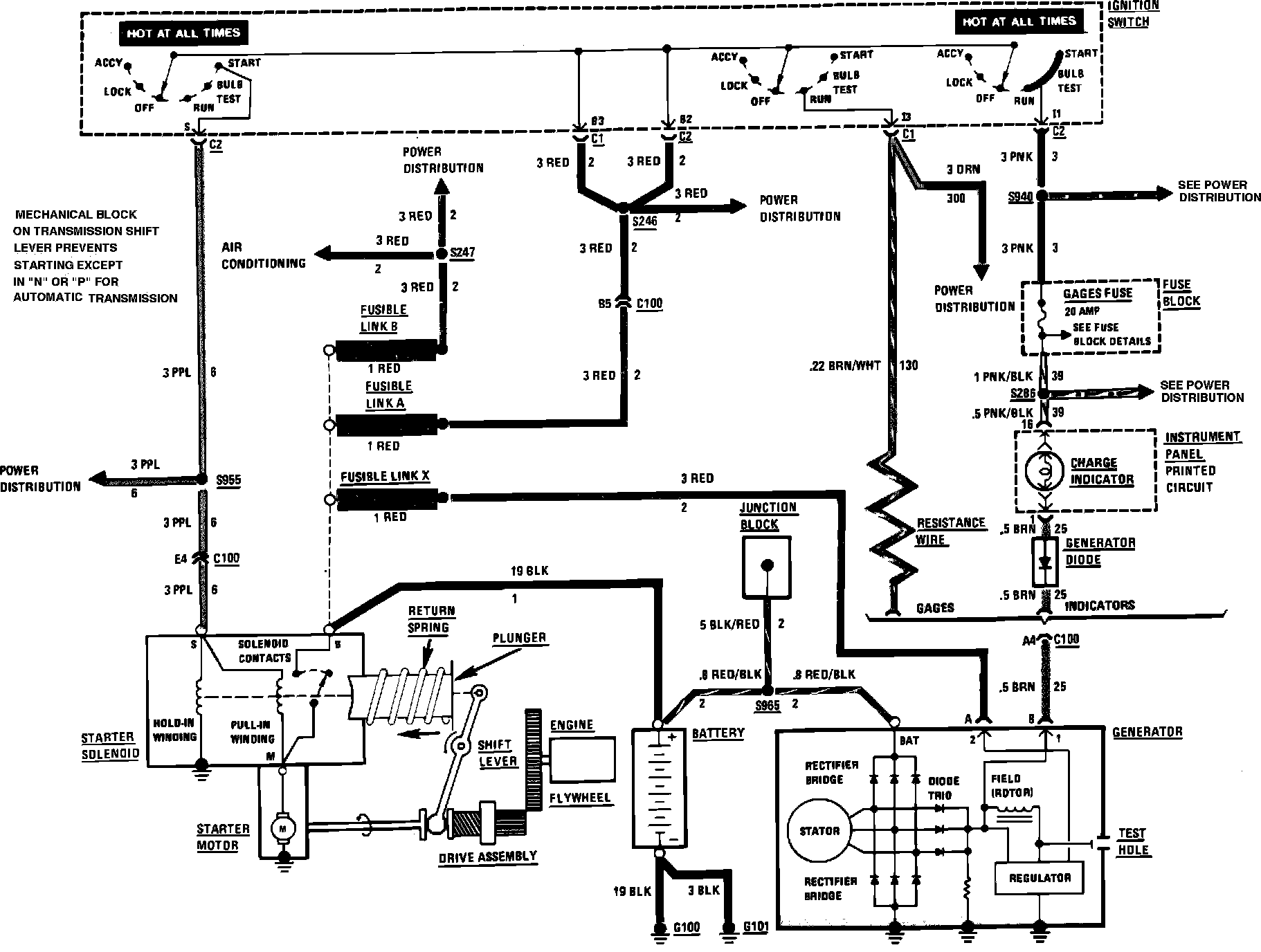

Fig. 28 Charging System & Starter Wiring Circuit, 6 Cylinder:
