Electronic/Powertrain Control Module (ECM/PCM)
Electronic/Powertrain Control Module (ECM/PCM)

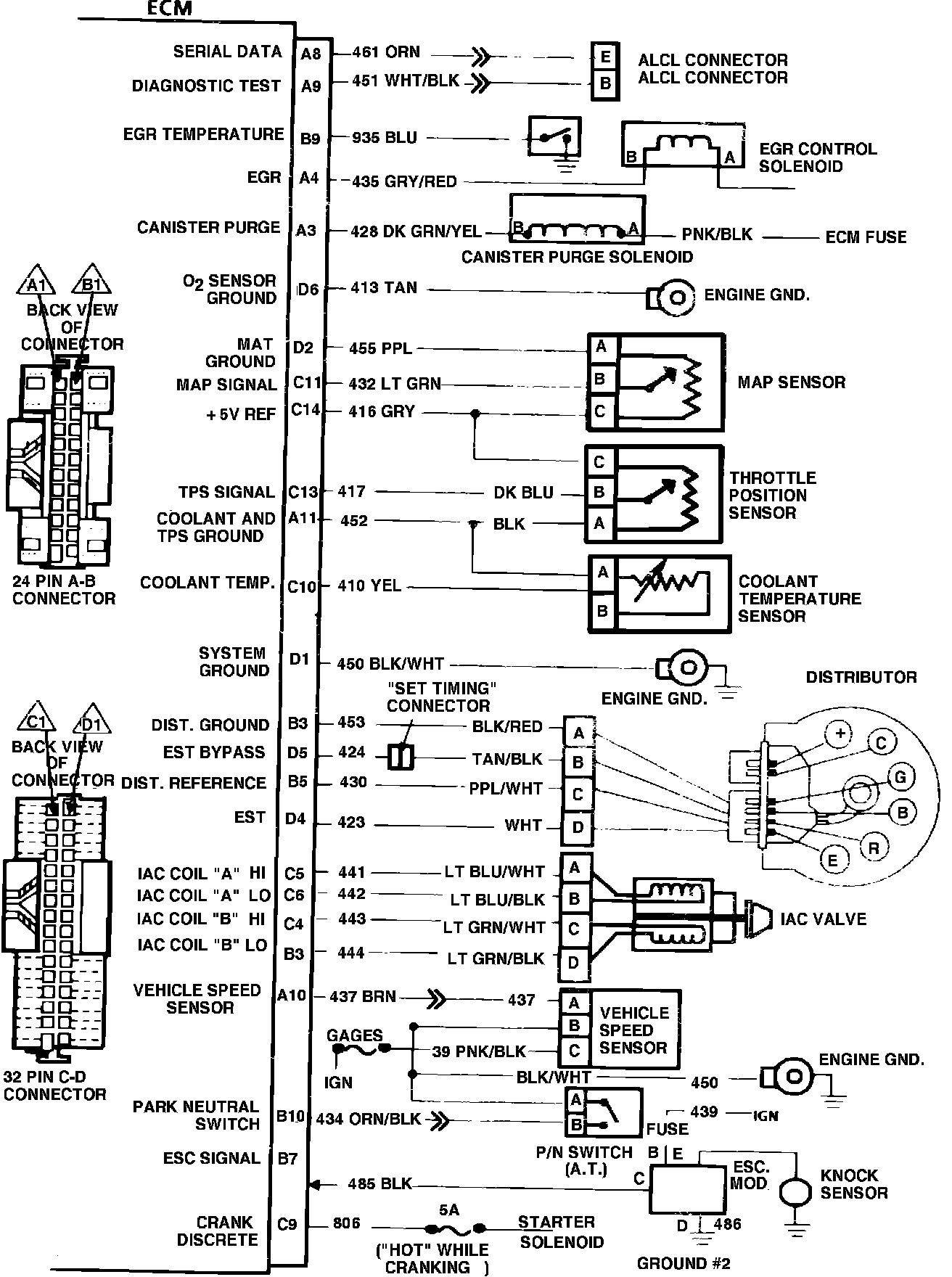

ECM Wiring Schematic (Part 1 of 2):
ECM Wiring Schematic (Part 2 of 2):
