Torque Converter Clutch & Vehicle Speed Sensor (VSS)

Throttle Body Injection Wiring Circuit (Torque Converter Clutch & Vehicle Sensors):

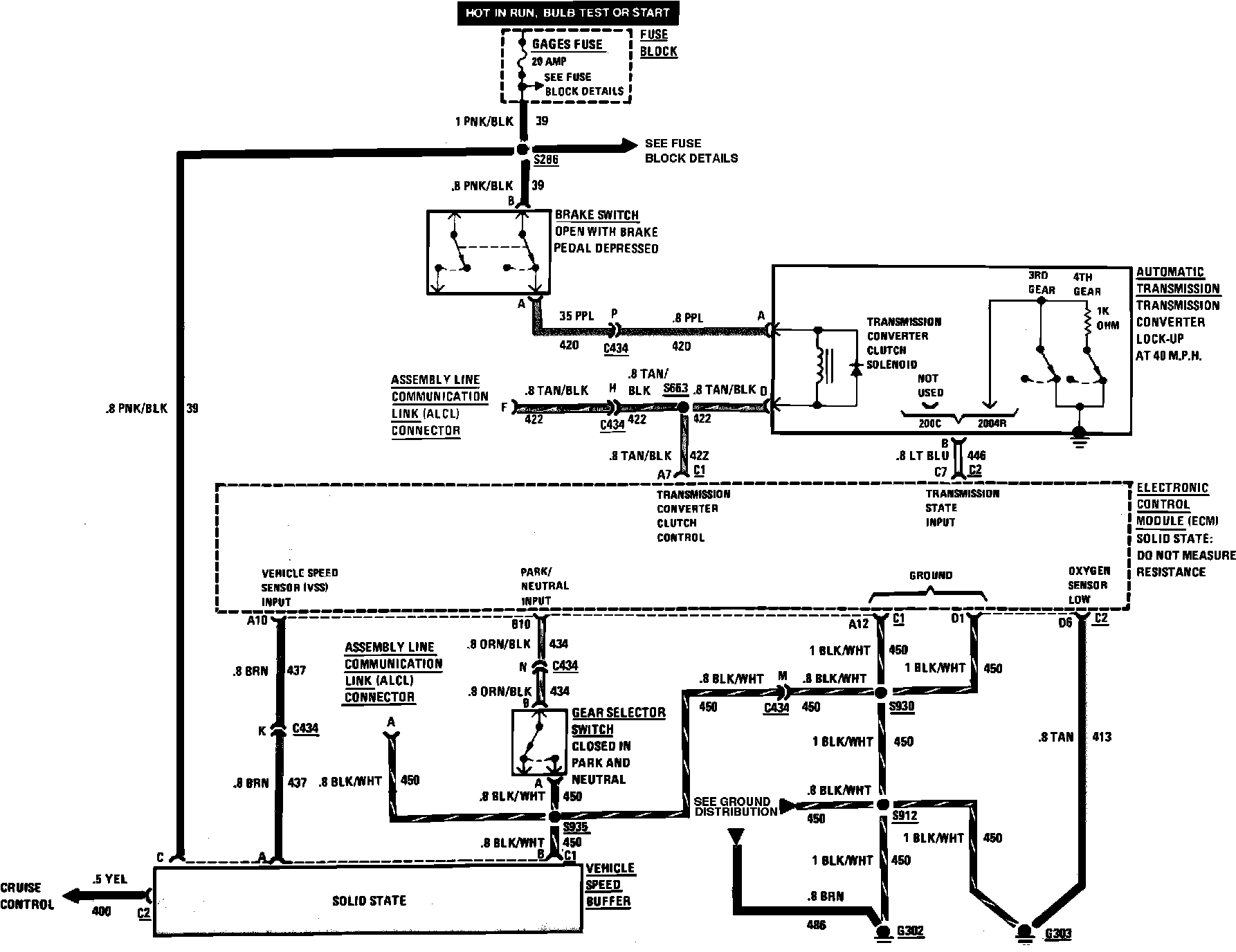

Fig. 219 Throttle Body Injection Wiring Circuit (Torque Converter Clutch & Vehicle Sensors).:
