Chevy Truck
>>
1986
>>
EL Camino V8-305 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Modules
>>
Electronic Control Module (ECM)
Electronic Control Module (ECM)

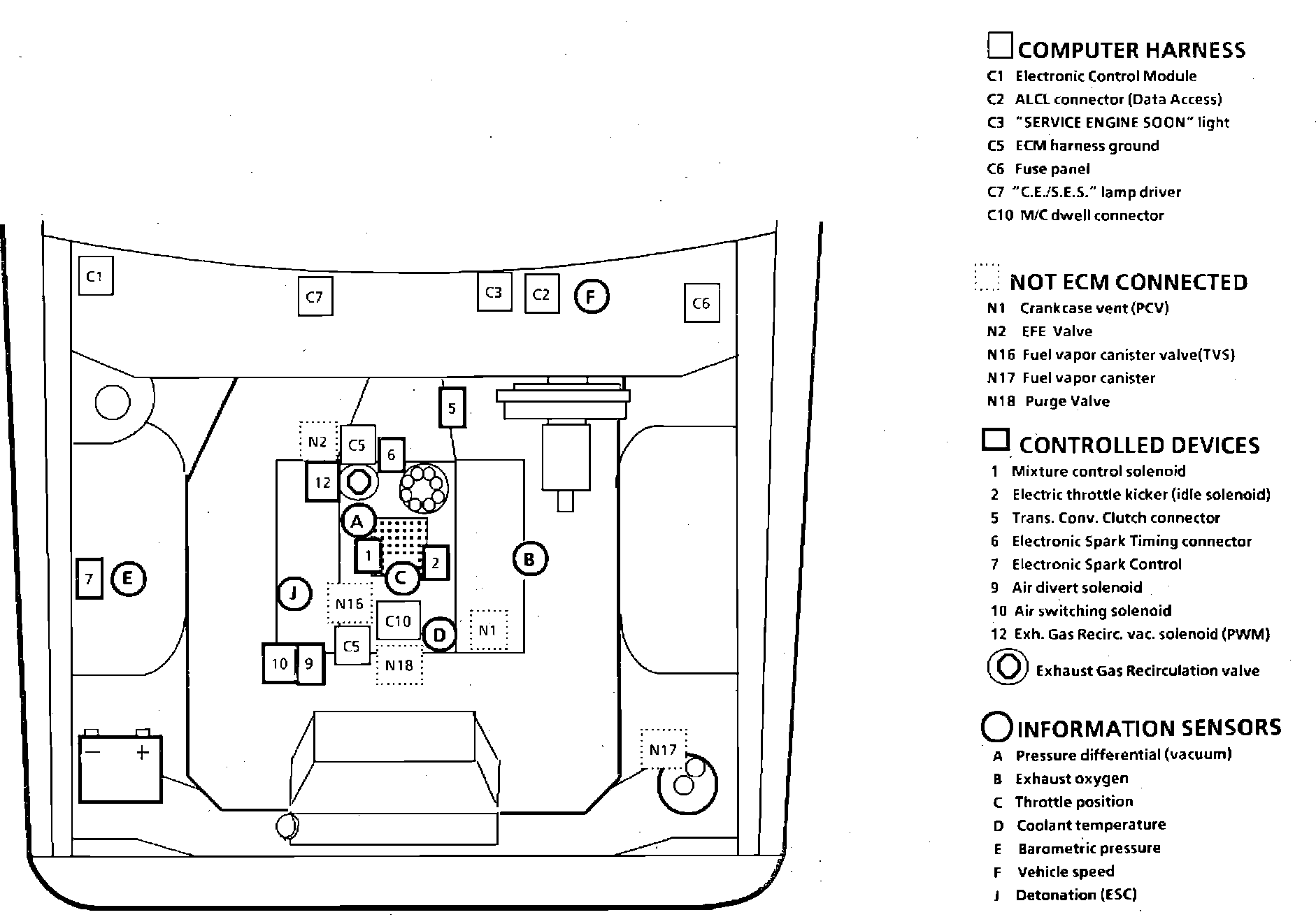

Under Dash & Underhood Components:
Under RH Corner Of I/P
Applicable to: 1986 V8-305/5.0L VIN H
