Heated Glass Element
Heated Glass Element

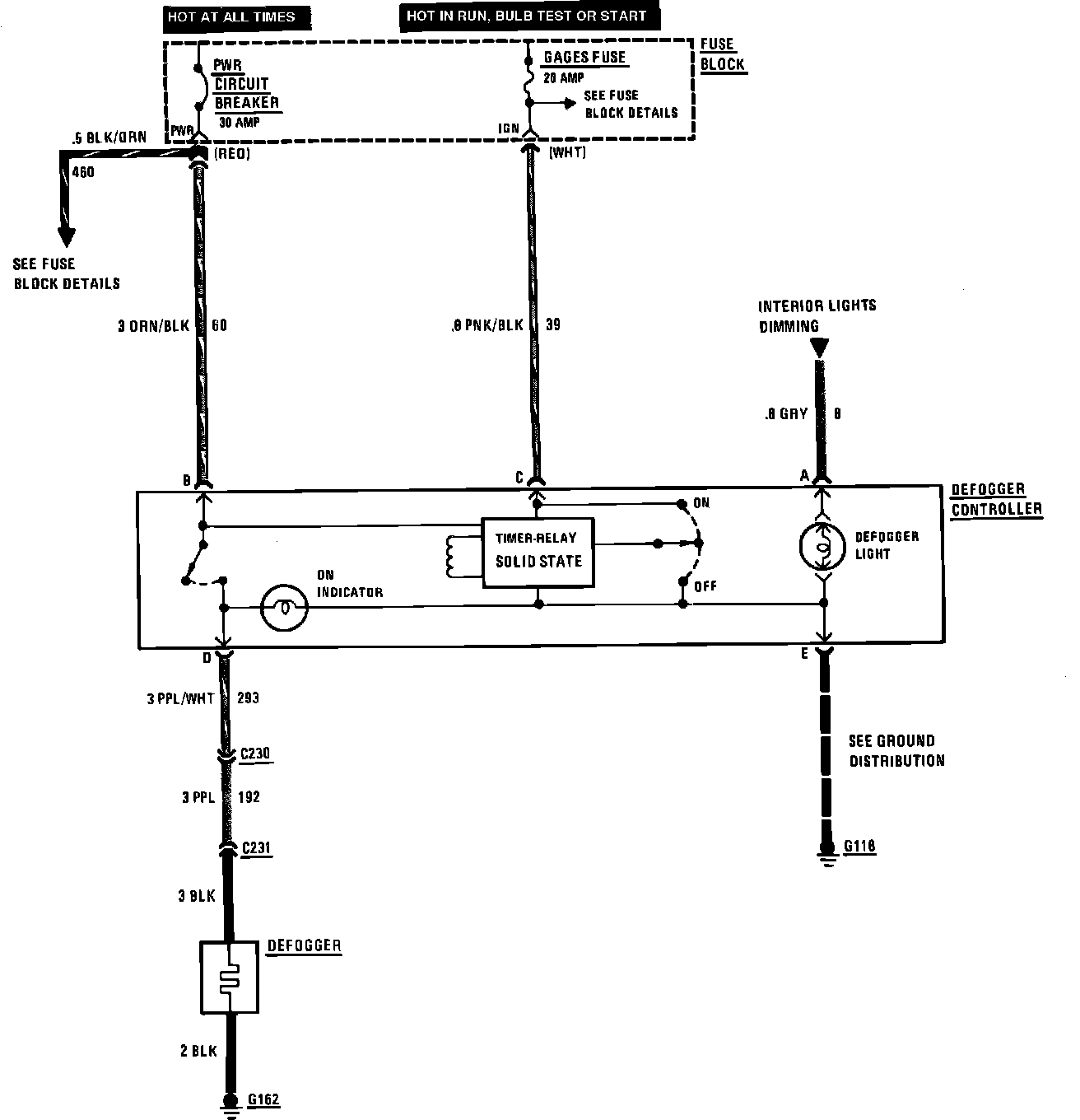

Rear Window Defogger Wiring Circuit:
Fig. 207 Rear Window Defogger Wiring Circuit.:
