(Part 1 of 2)

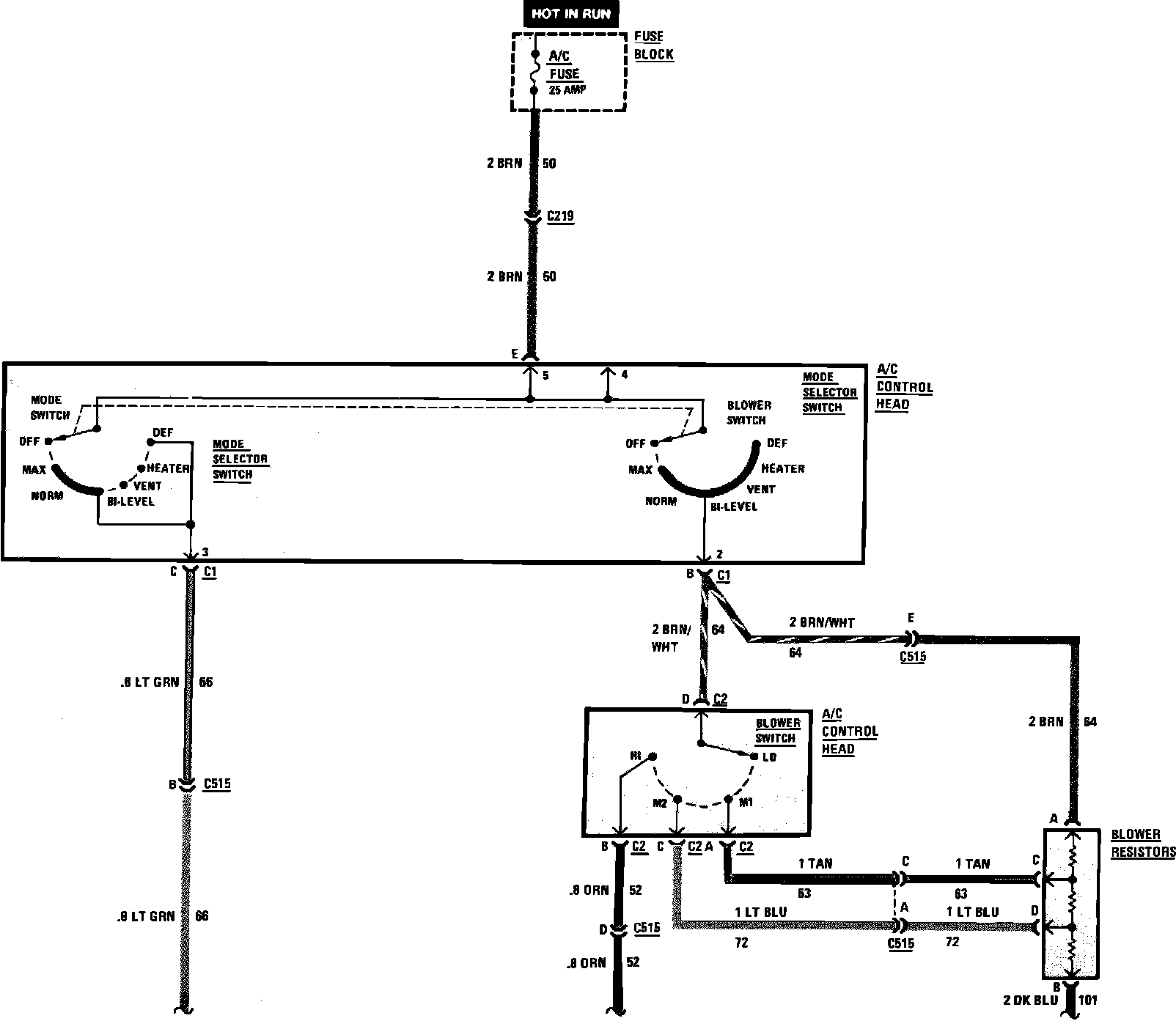

Fig. 9 Air Conditioning Vacuum Circuit Blower & Compressor Control Wiring Circuit (Part 1 Of 2):



Air Conditioning Vacuum Circuit Blower & Compressor Control Wiring Circuit:
