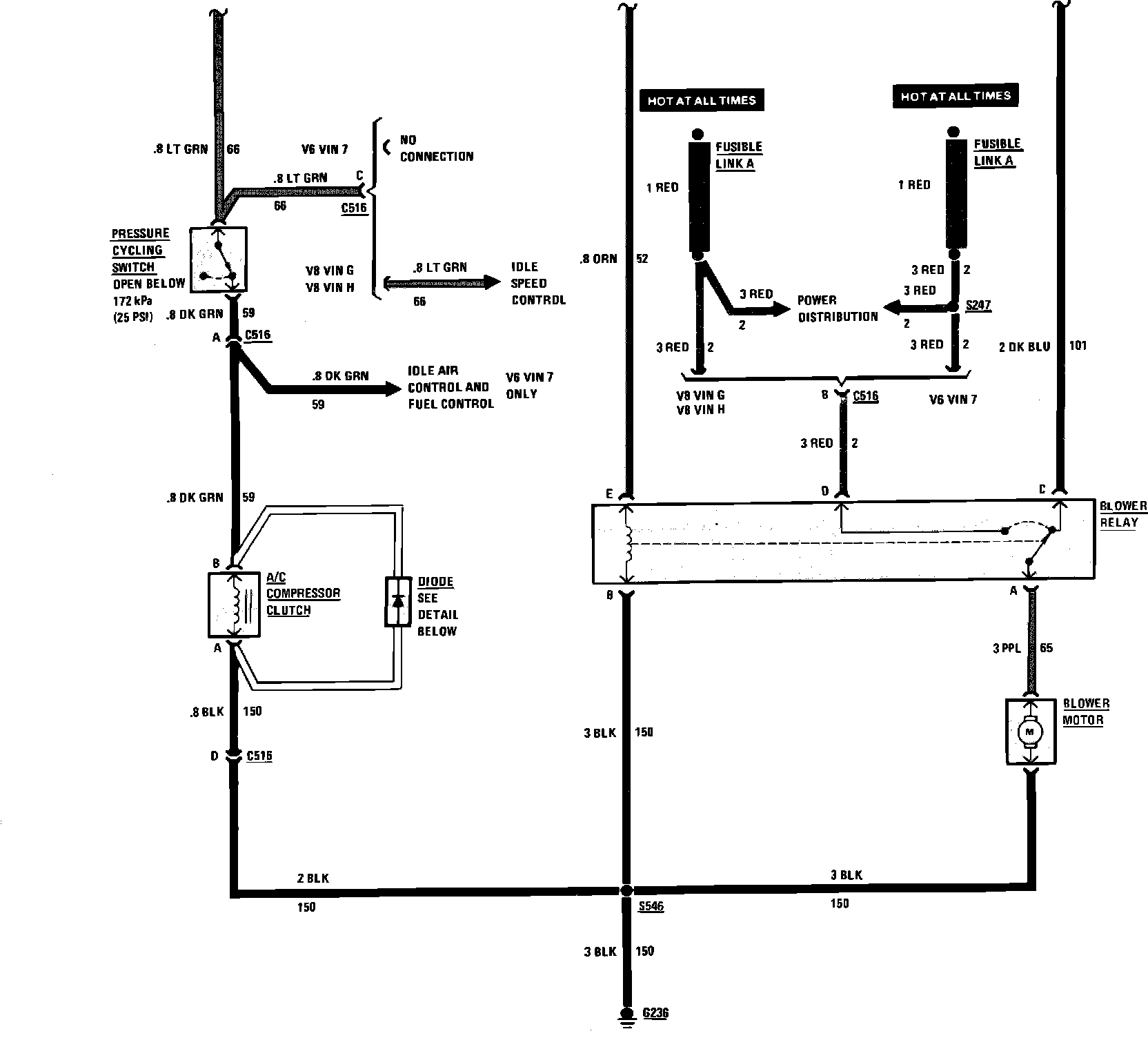

Fig. 9 Air Conditioning Vacuum Circuit Blower & Compressor Control Wiring Circuit (Part 2 Of 2):



Air Conditioning Vacuum Circuit Blower & Compressor Control Wiring Circuit:
