Tail Lamp

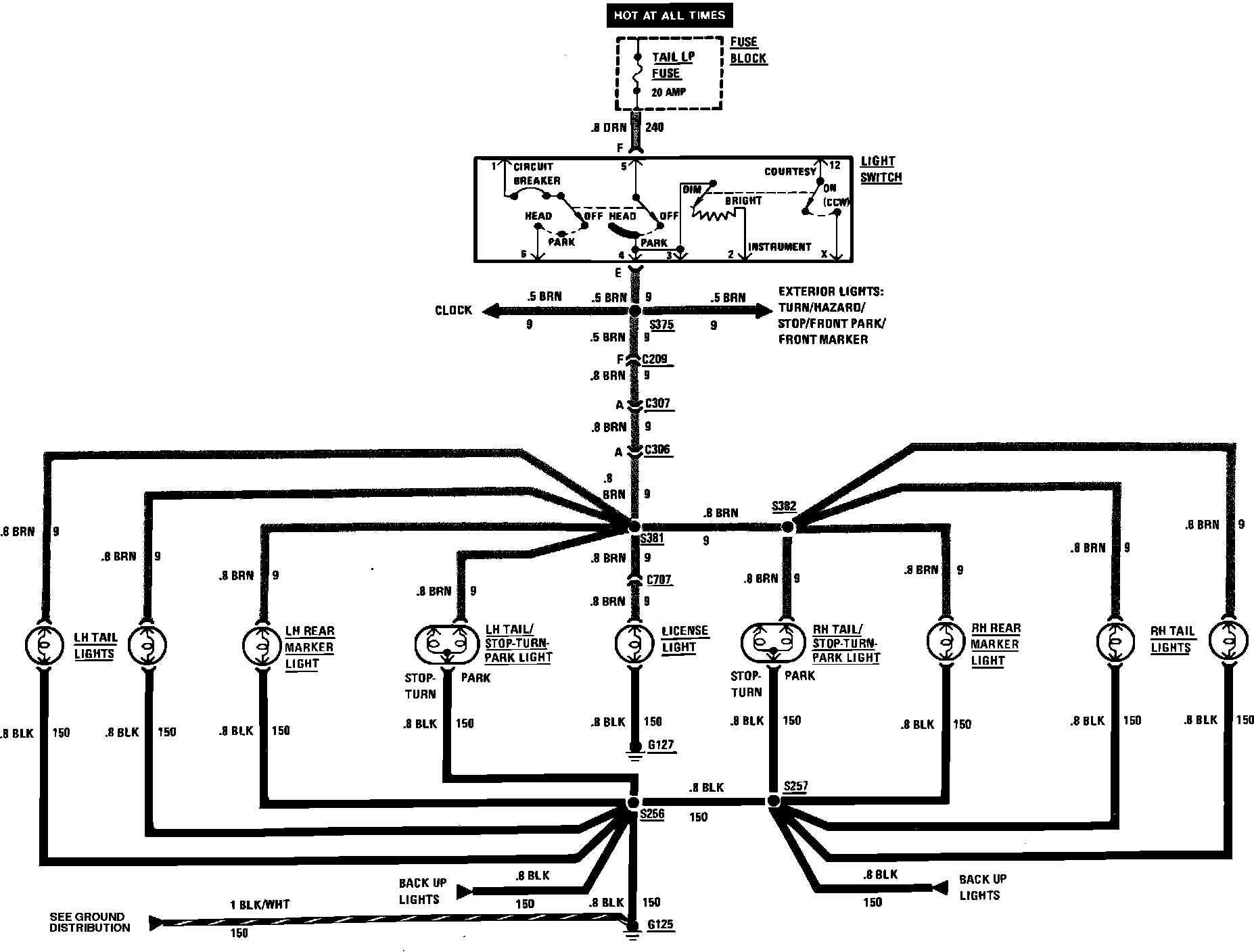

Fig. 152 License Plate, Rear Marker & Tail Lamp Wiring Circuit.:



License Plate, Rear Marker & Tail Lamp Wiring Circuit:
