Emission Controls & Engine Data Sensors

Computer Command Control Wiring Circuit (Emission Controls & Engine Data Sensors):

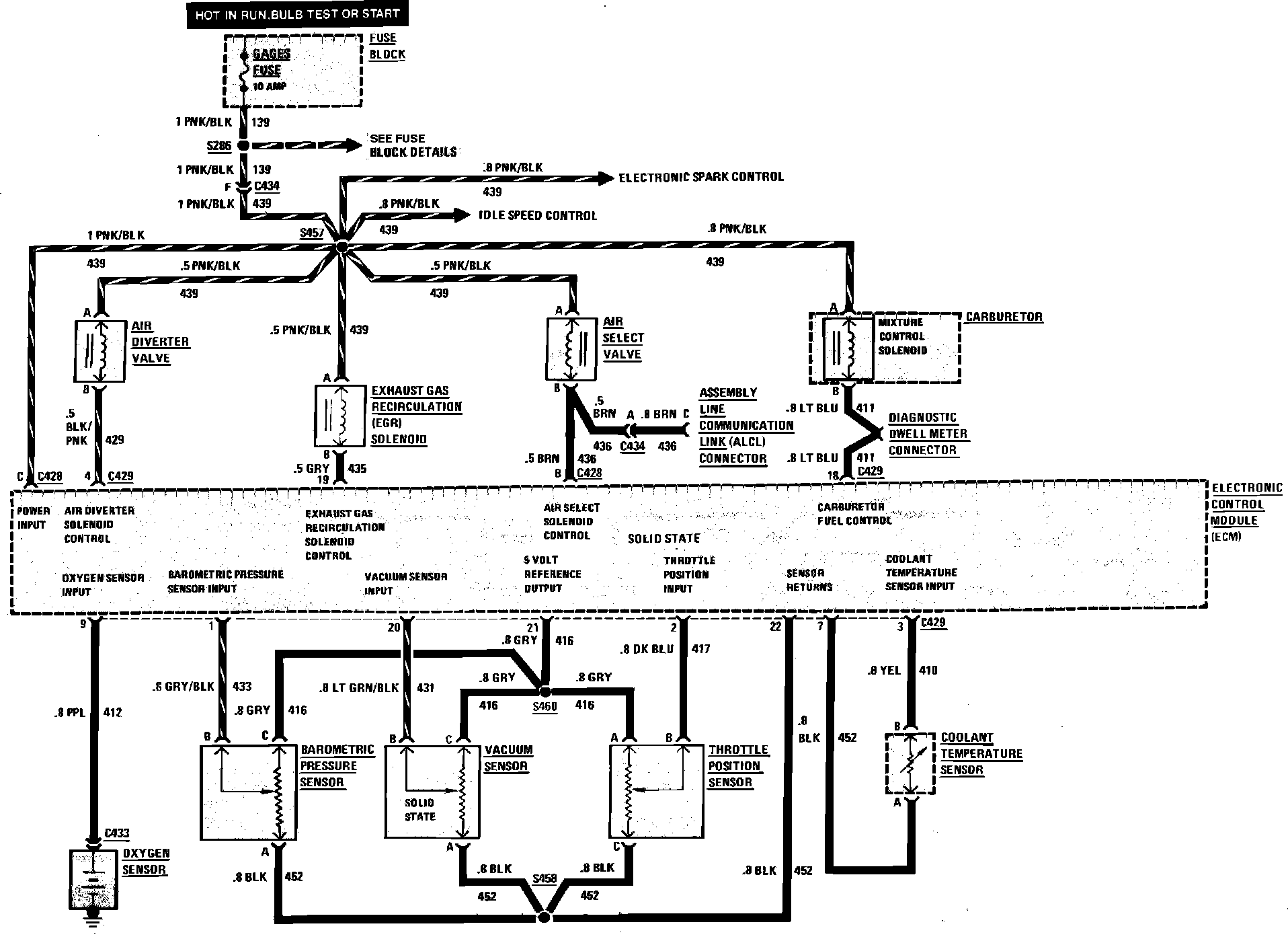

Fig. 48 Computer Command Control Wiring Circuit (Emission Controls & Engine Data Sensors). 8 Cylinder:
