Idle Speed Control (ISC)
Idle Speed Control (ISC)

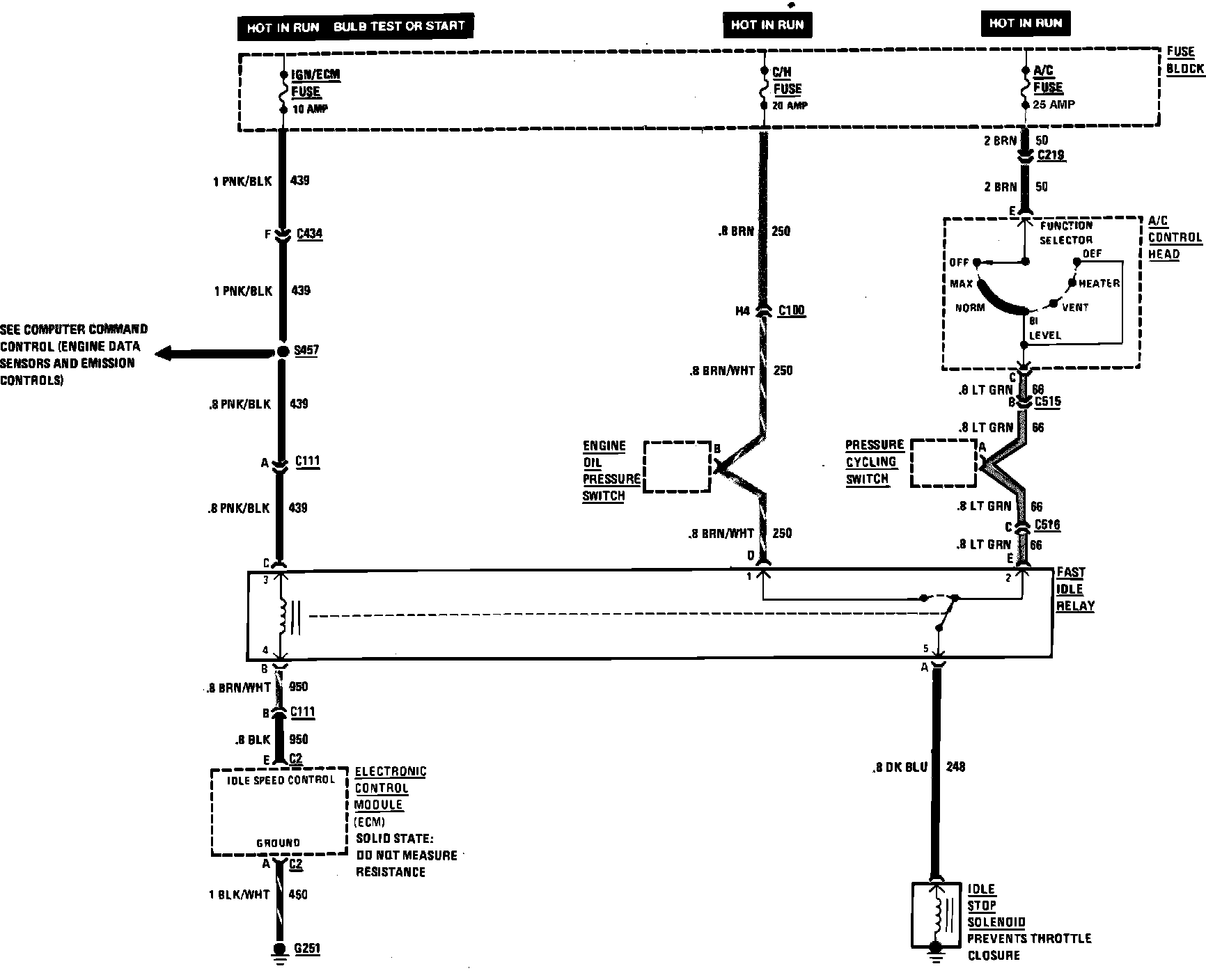

Fig. 55 Computer Command Control Wiring Circuit (Idle Speed Control). 8 Cylinder:
