Torque Converter Clutch (TCC) & Vehicle Data Sensors

Computer Command Control Wiring Circuit (Torque Converter Clutch & Vehicle Sensors):

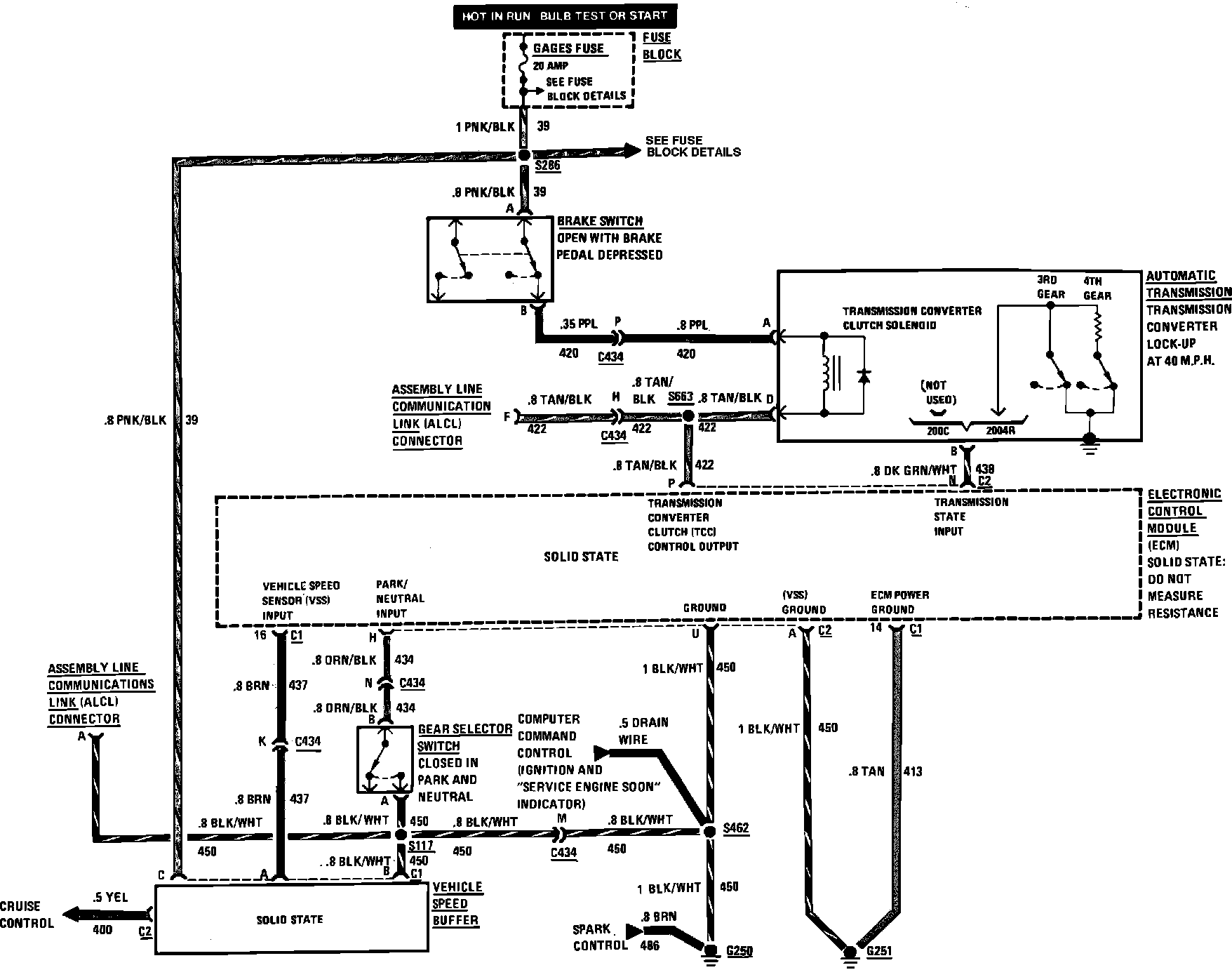

Fig. 67 Computer Command Control Wiring Circuit (Torque Converter Clutch & Vehicle Sensors). 8 Cylinder:
