Front Lights (G119 & G120)

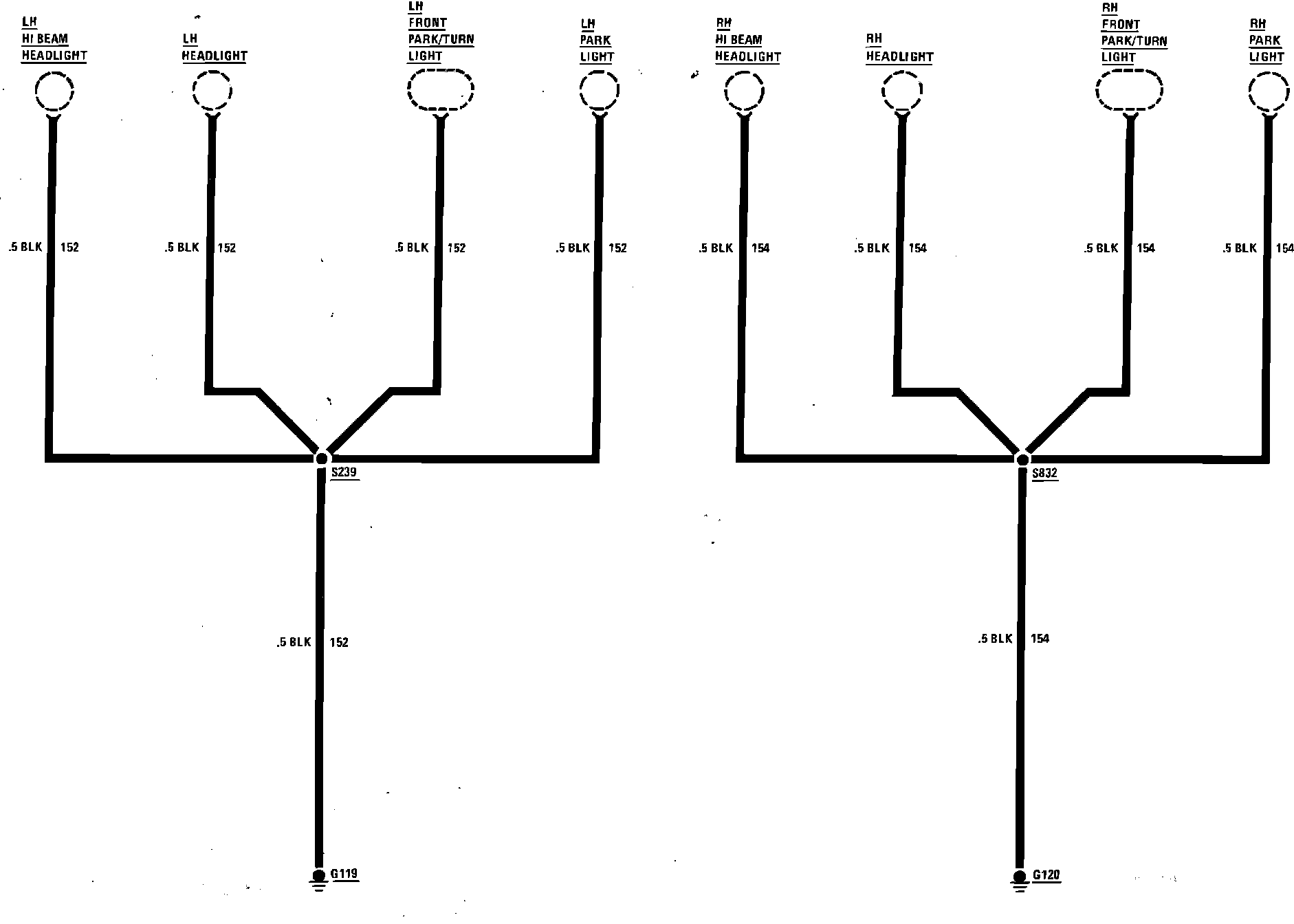

Fig. 99 Ground Distribution, Front Lights (G119 & G120):



Ground Distribution, Front Lights (G119 & G120):
