Starting and Charging
>>
System Diagram
System Diagram
Charging System & Starter Wiring Circuit:

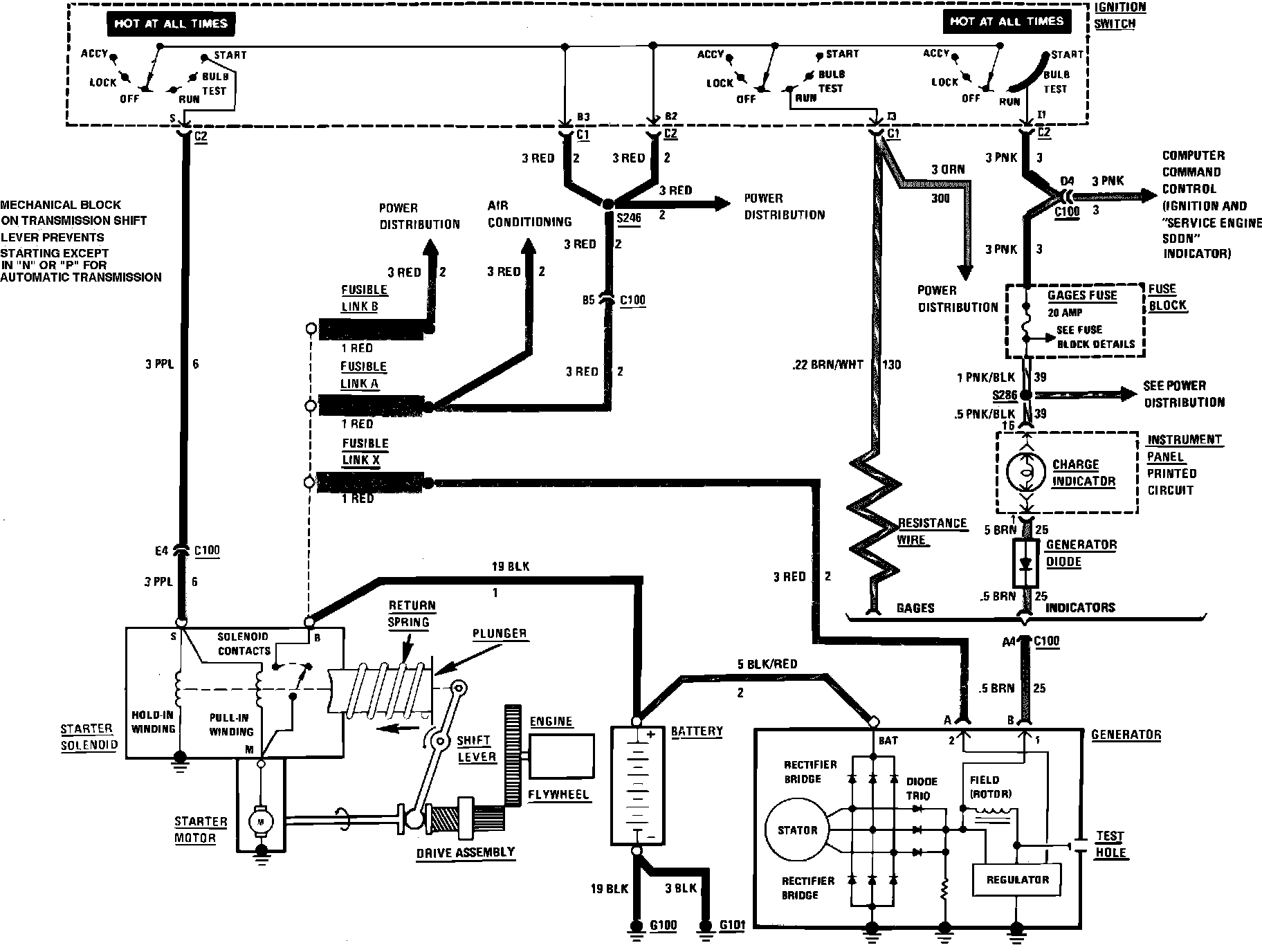

Fig. 29 Charging System & Starter Wiring Circuit, 8 Cylinder:
