Diesel Data
: Automotive Repair
Home
>>
Chevy Truck
>>
1986
>>
EL Camino V8-305 5.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel
Instrument Panel

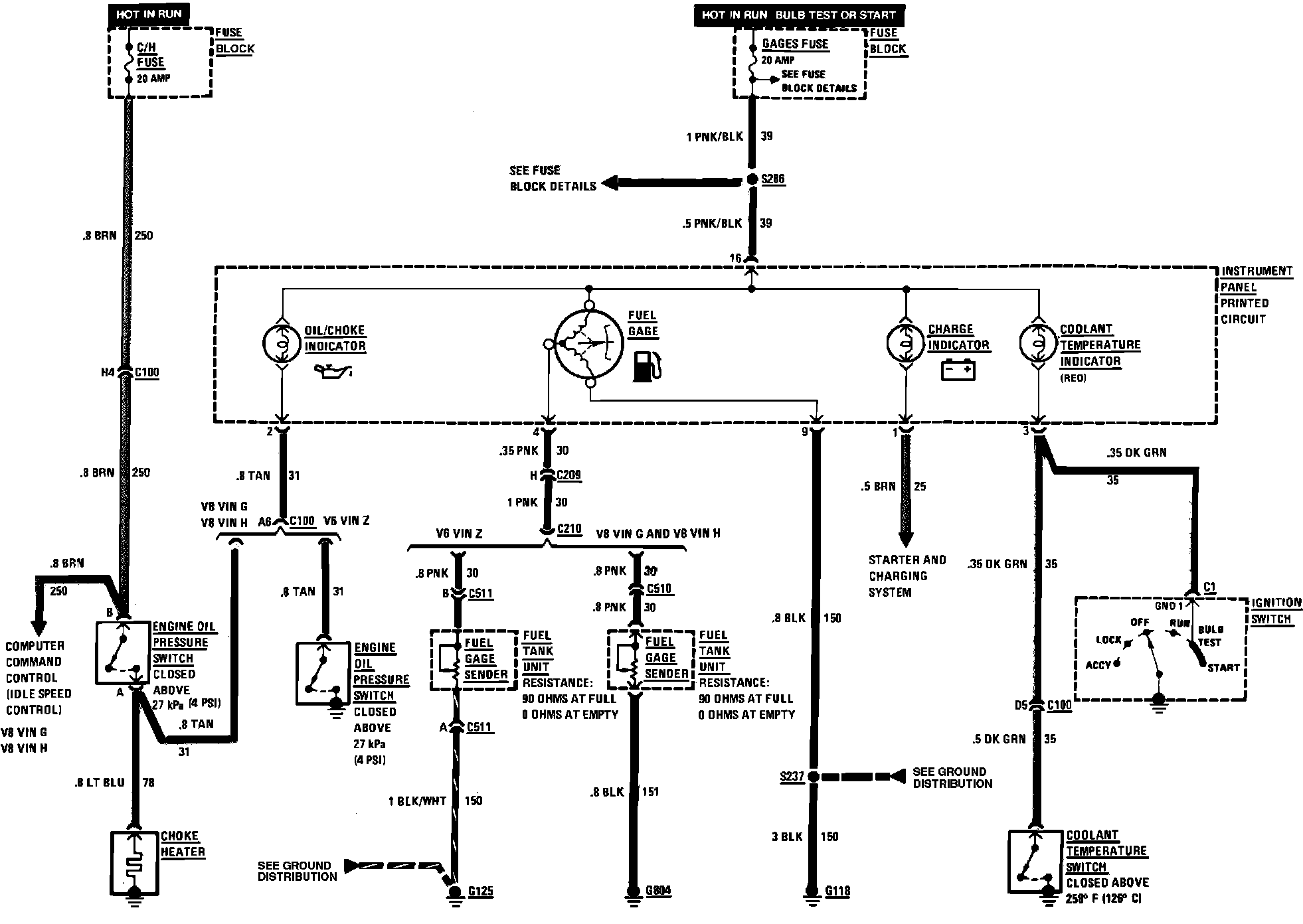

Instrument Panel Wiring Circuit (With Standard Cluster):
