Diesel Data
: Automotive Repair
Home
>>
Chevy Truck
>>
1986
>>
EL Camino V8-305 5.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Controls
>>
Electronic/Engine Control Module (ECM)
Electronic/Engine Control Module (ECM)

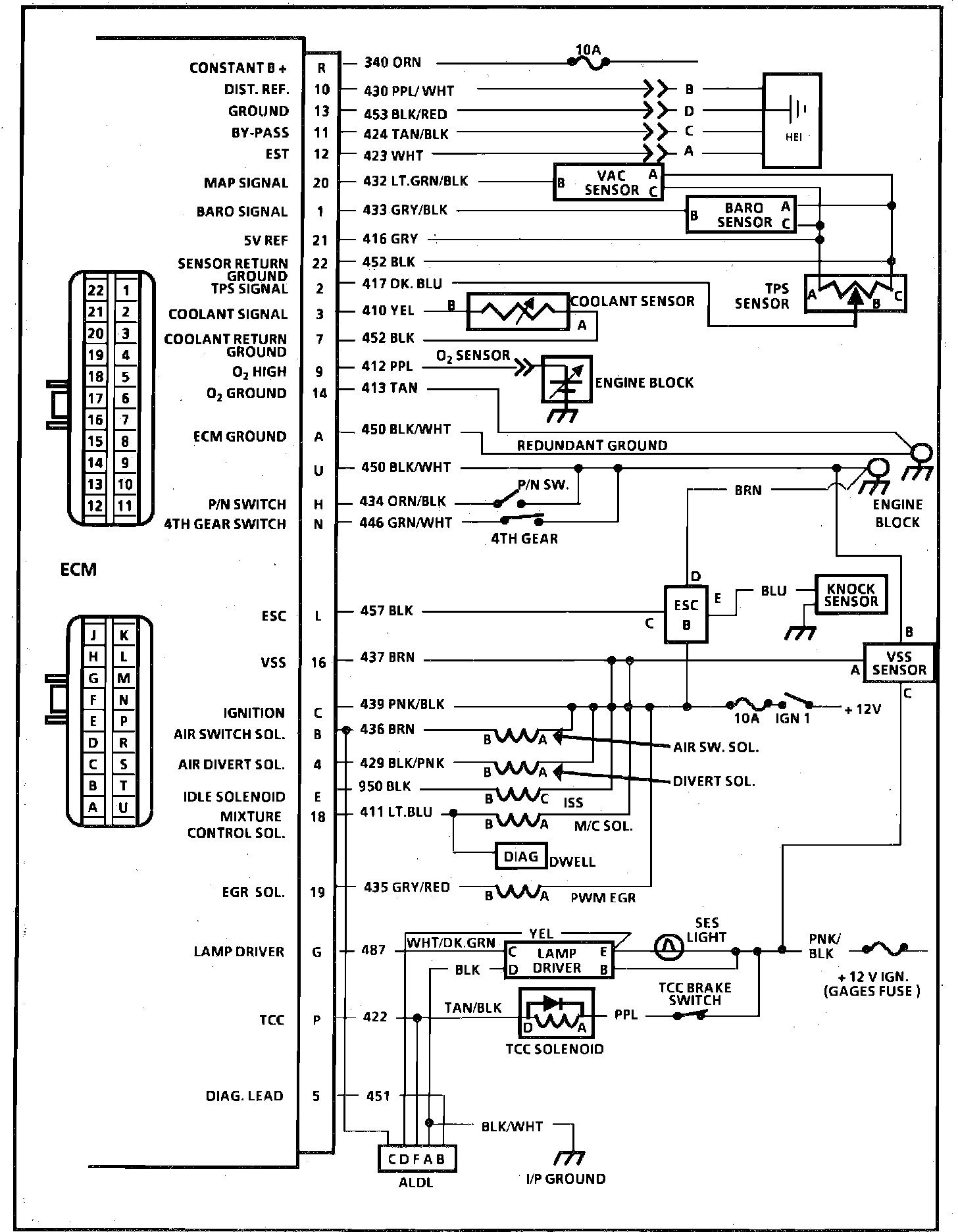

ECM Wiring Diagram:
