Rear Lights (G125)

Ground Distribution, Rear Lights (G125):

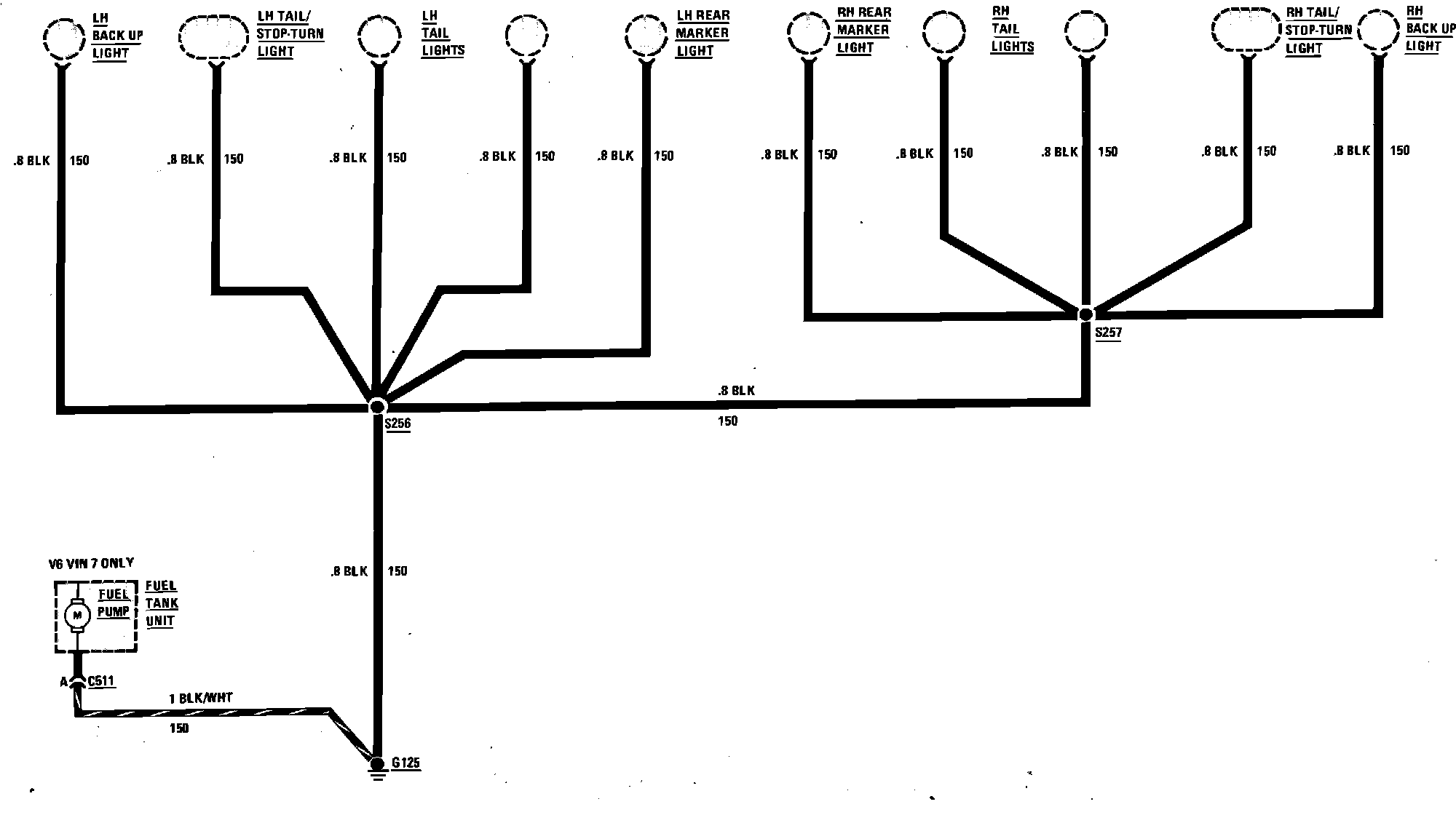

Fig. 109 Ground Distribution, Rear Lights (G125):
