Chevy Truck
>>
1986
>>
G 10 Van V8-305 5.0L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Diagrams
>>
Electrical Diagrams
>>
Auxiliary Lighting
Auxiliary Lighting

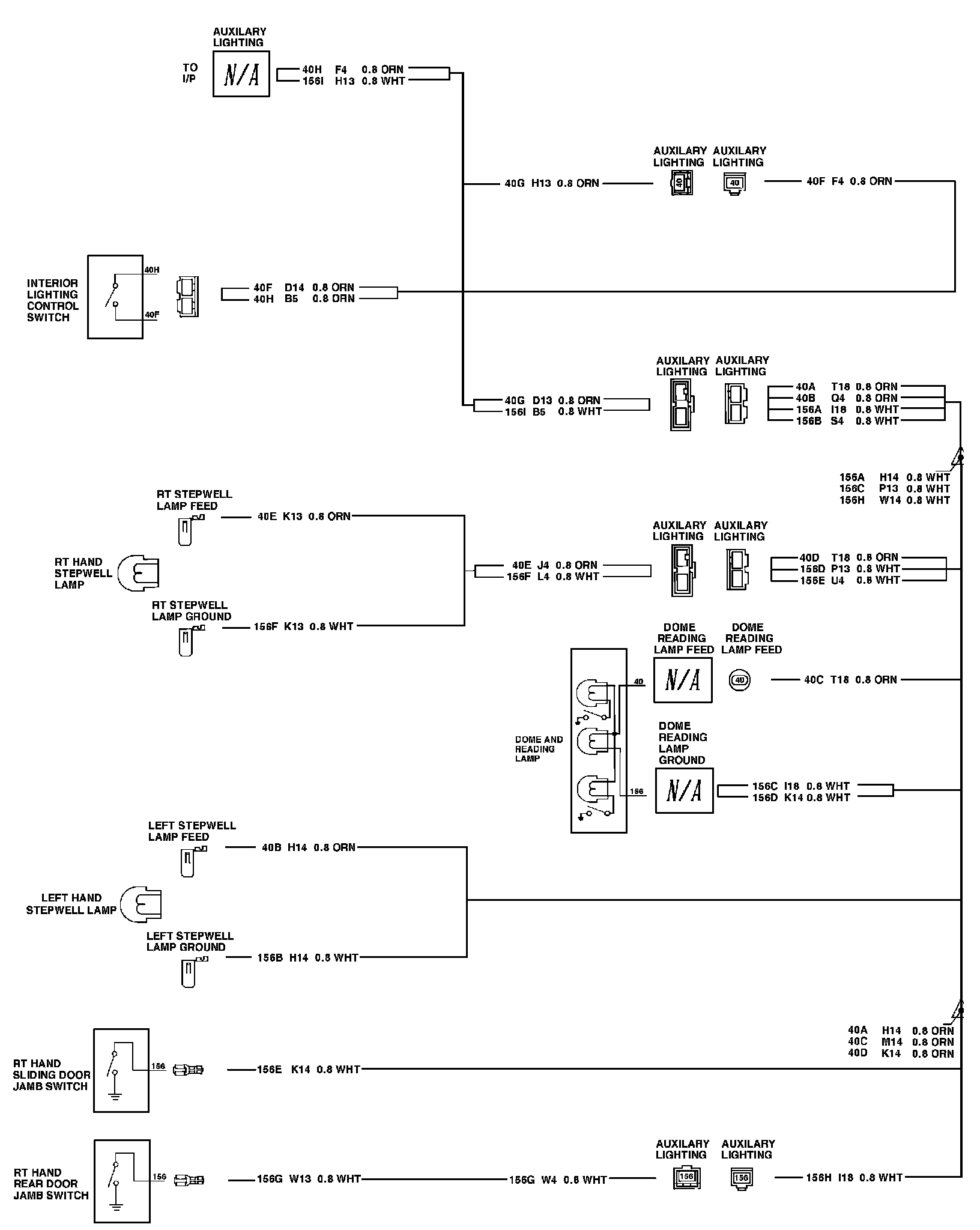

Auxiliary Lighting Group Wiring Circuit:
