Diesel Data
: Automotive Repair
Home
>>
Chevy Truck
>>
1986
>>
G 20 Van V8-305 5.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Engine Controls
>>
Federal Vehicles
Federal Vehicles

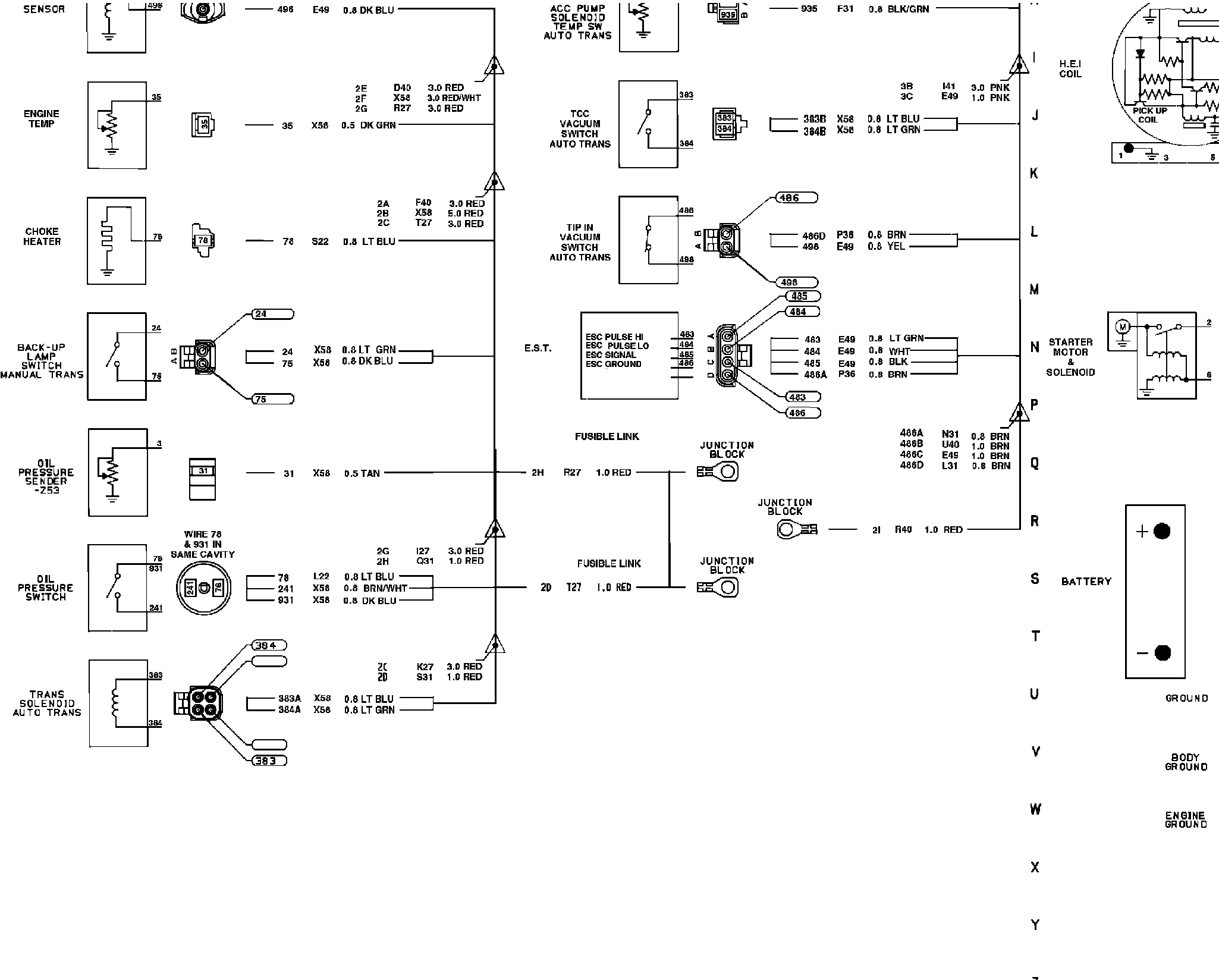

�u�$$��$\��$Engine Controls Wiring Circuit:
