Diesel Data
: Automotive Repair
Home
>>
Chevy Truck
>>
1986
>>
S10/T10 P/U 2WD V6-173 2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trailer Adapter Kit
>>
Standard
Standard

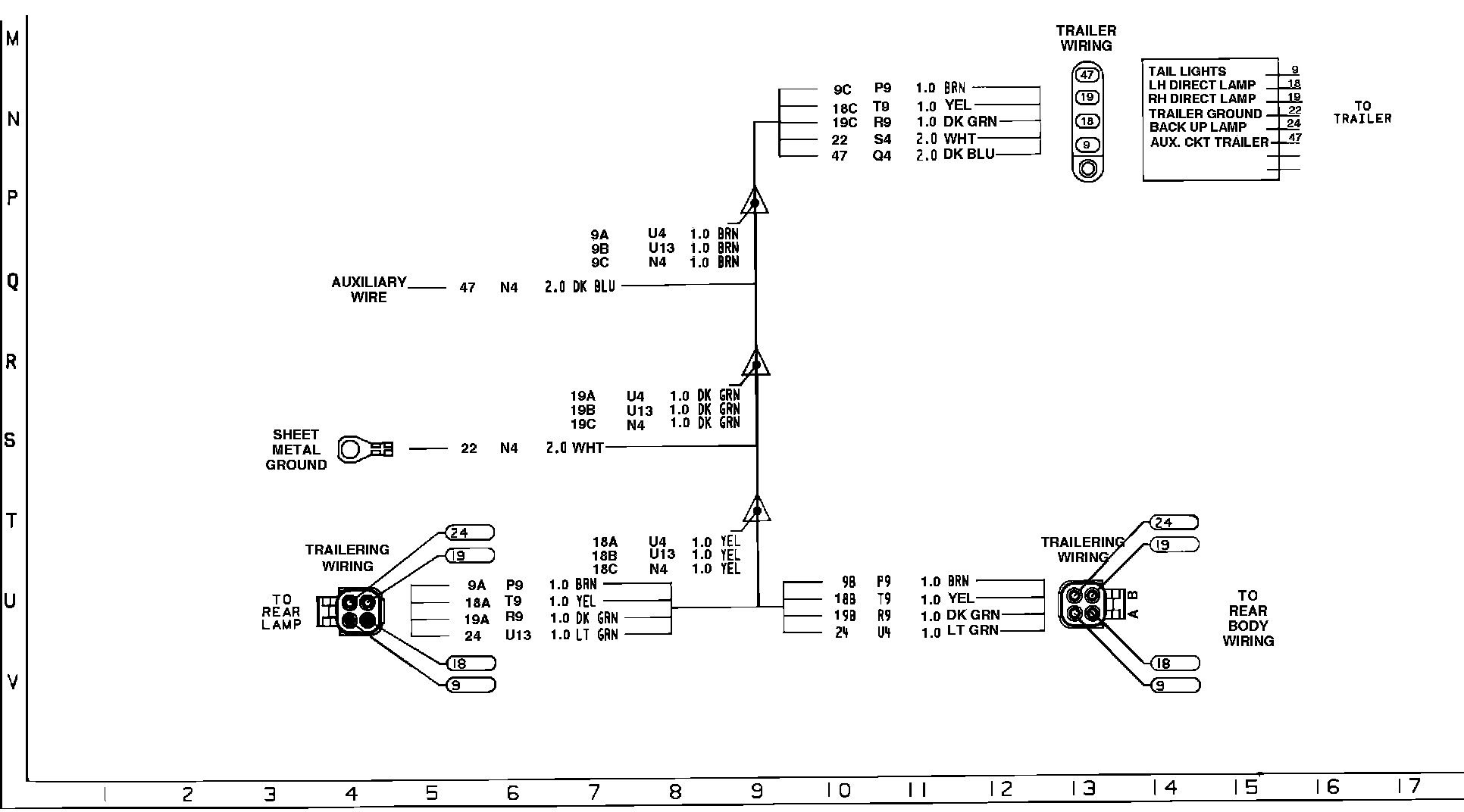

Trailer Harness Wiring Circuit:

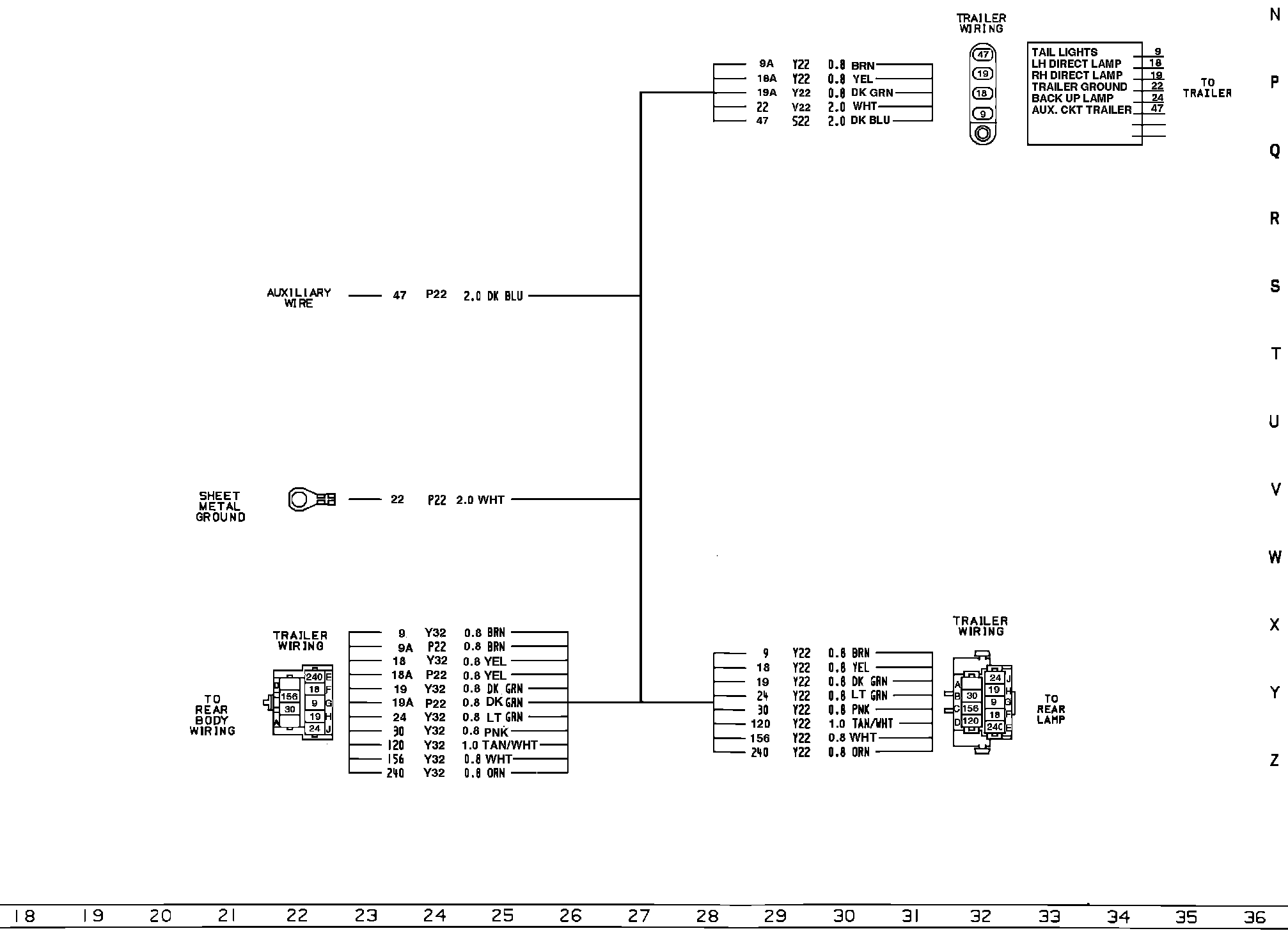

Trailer Harness Wiring Circuit:
