Diesel Data
: Automotive Repair
Home
>>
Chevy Truck
>>
1986
>>
S10/T10 P/U 4WD L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Four Wheel Drive Indicator
Four Wheel Drive Indicator

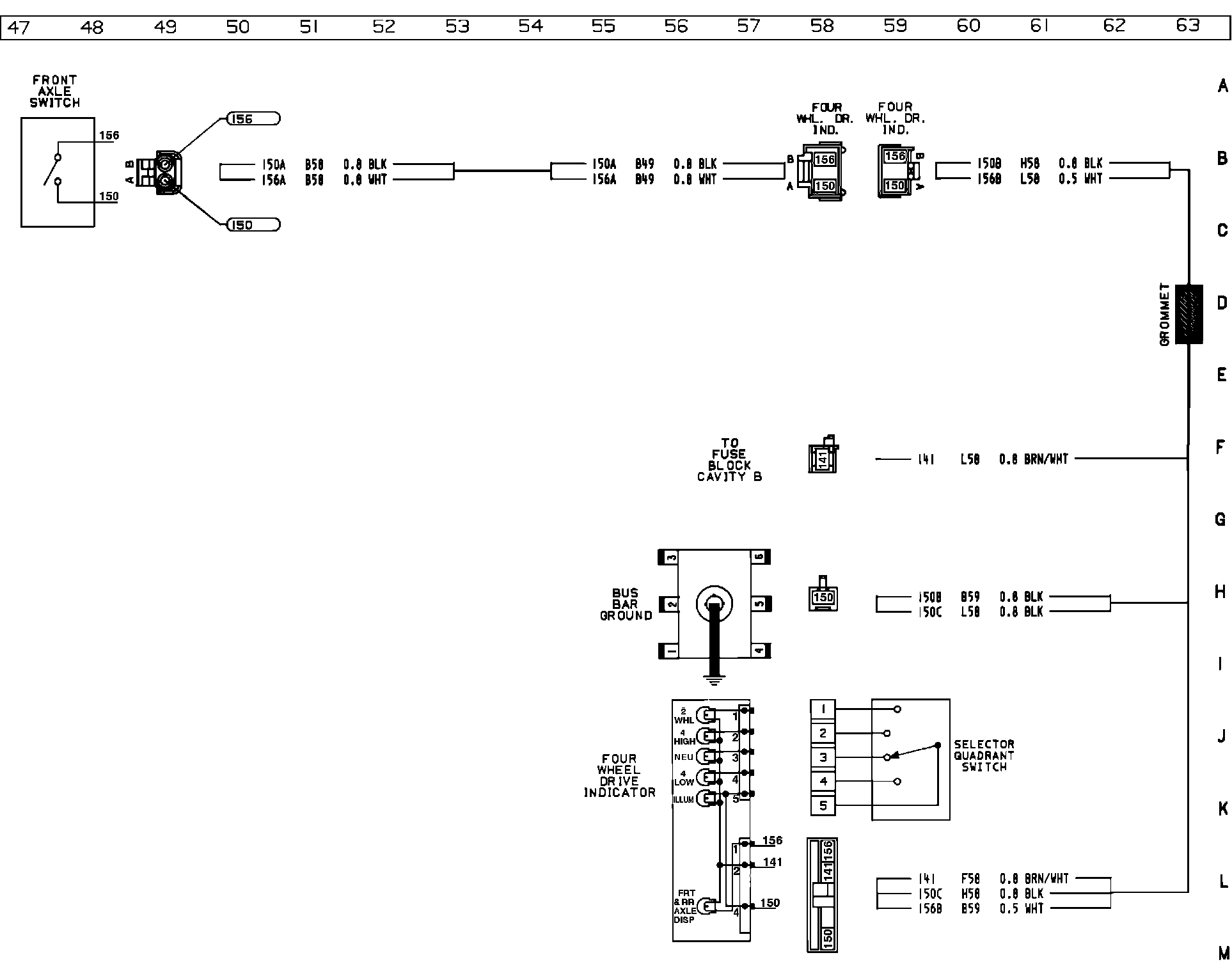

Four Wheel Drive Indicator & Front Axle Switch:
