Home
>>
Chevy Truck
>>
1986
>>
Suburban 3/4 Ton 2WD V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
With Air Conditioning
>>
Rear Air Conditioning
Rear Air Conditioning

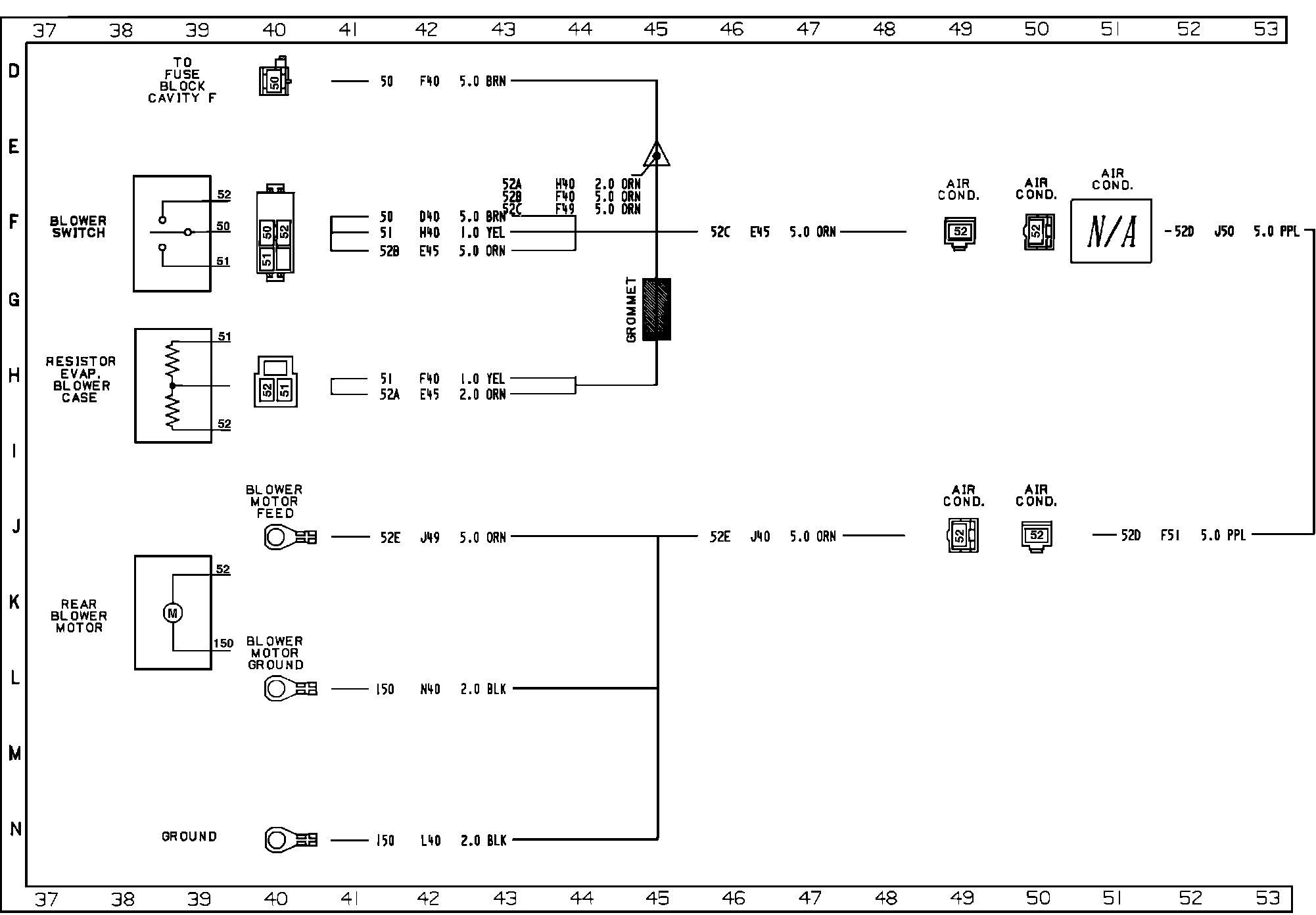

Air Conditioning Wiring Circuit (Rear Unit):
