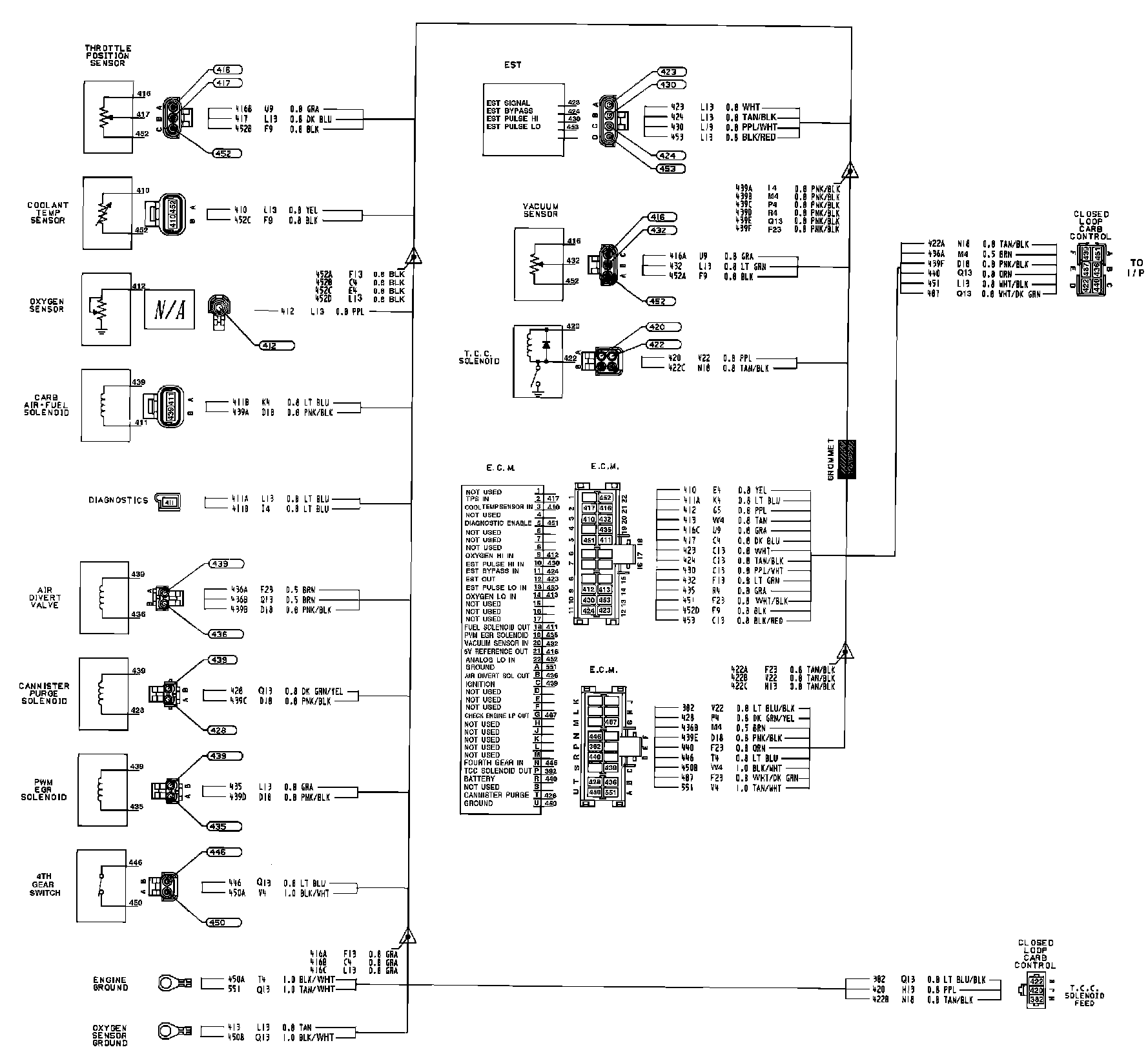

Home >> Chevy Truck >> 1986 >> Suburban 3/4 Ton 2WD V8-350 5.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Closed Loop Carburetor Control >> Calif. K Series
