Diesel Data
: Automotive Repair
Home
>>
Chevy Truck
>>
1986
>>
Suburban 3/4 Ton 2WD V8-350 5.7L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Without Air Conditioning
>>
Front Heater
Front Heater

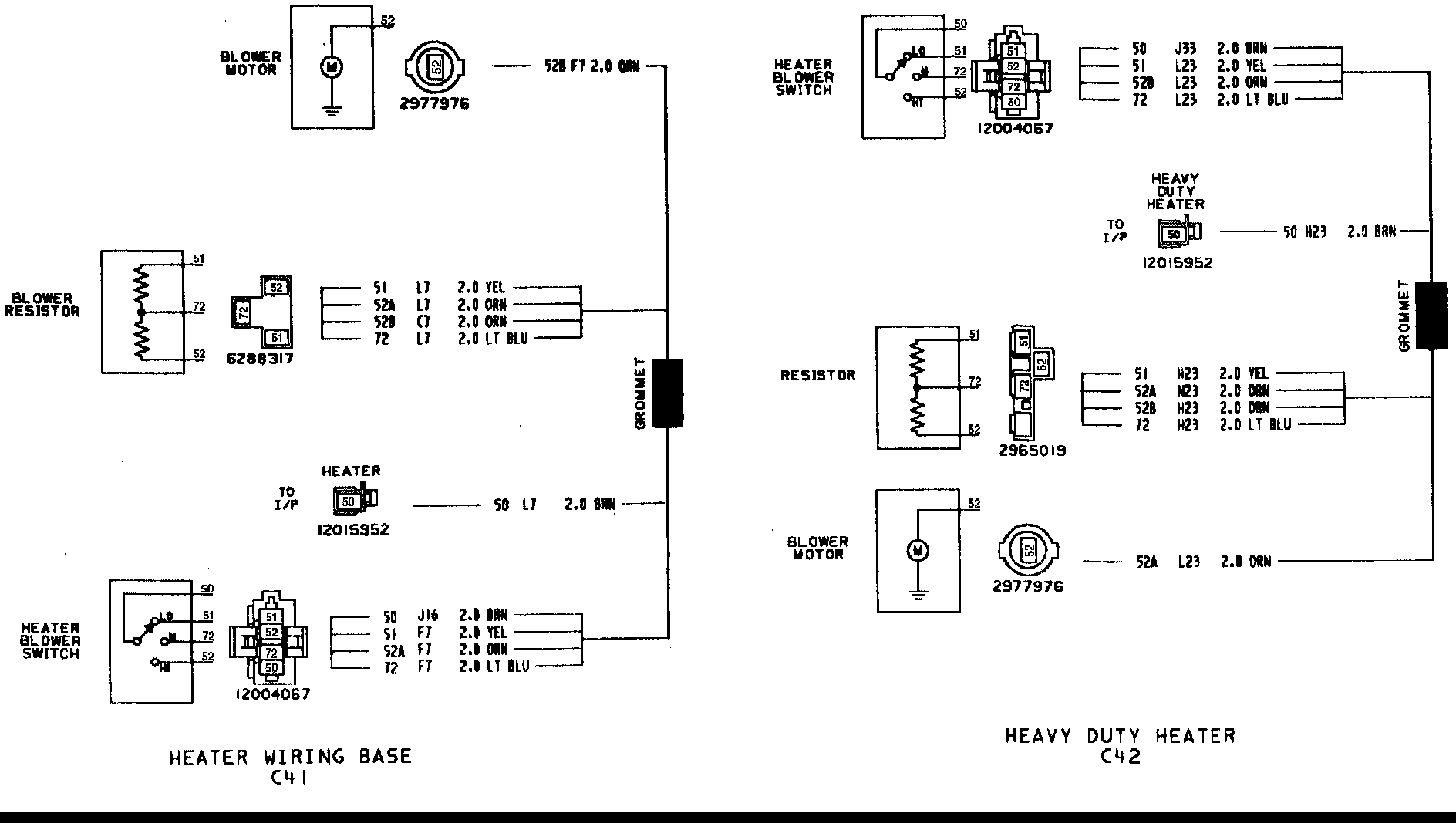

Front Heater Wiring:
