Rochester Quadrajet E4M Series Carburetor
Rochester Quadrajet E4M Series Carburetor

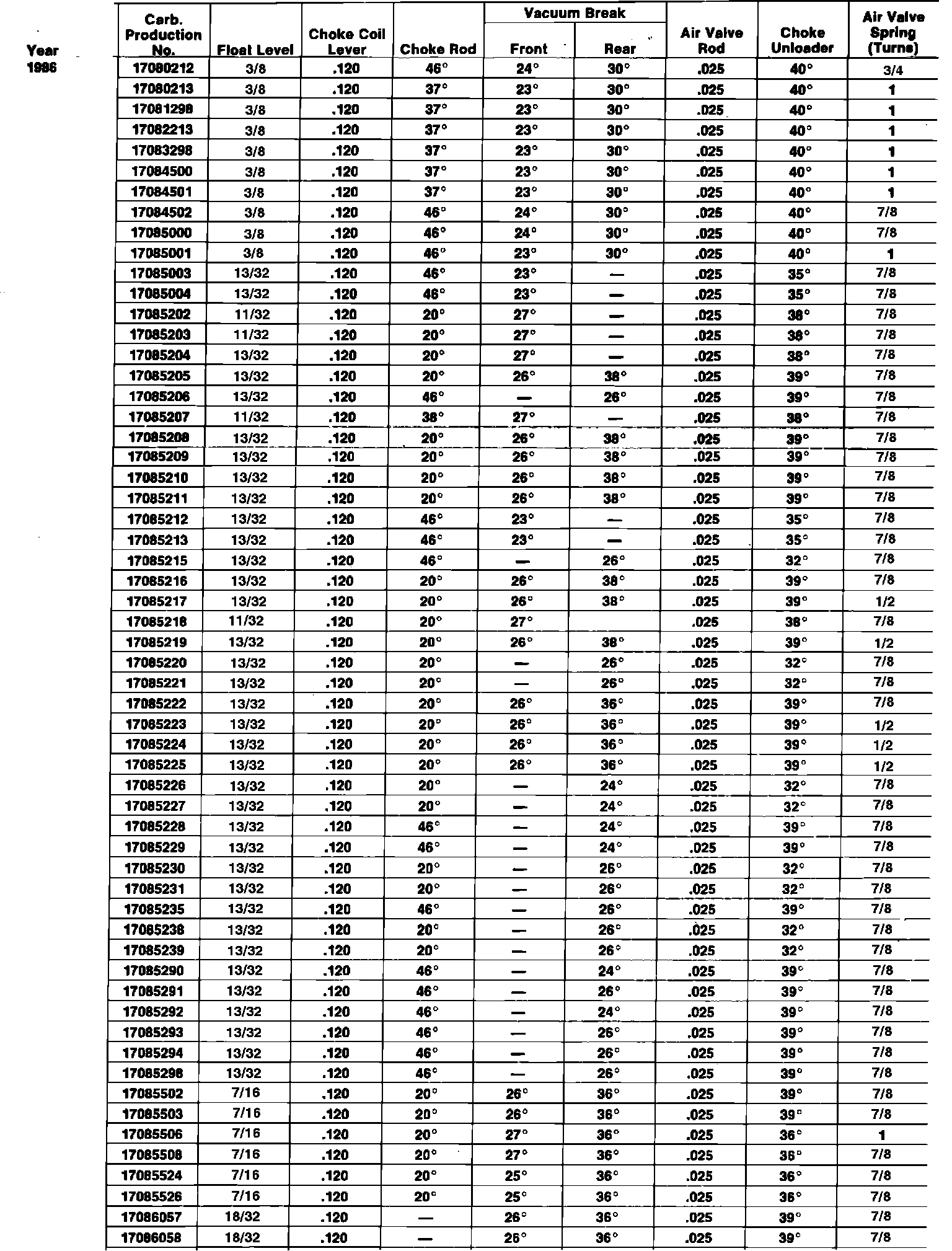

Fig. 13 ADJUSTMENT SPECIFICATIONS:
