Cruise Control Switch
>>
Testing and Inspection
>>
Off/On/Resume/Accel Switch Test
Off/On/Resume/Accel Switch Test

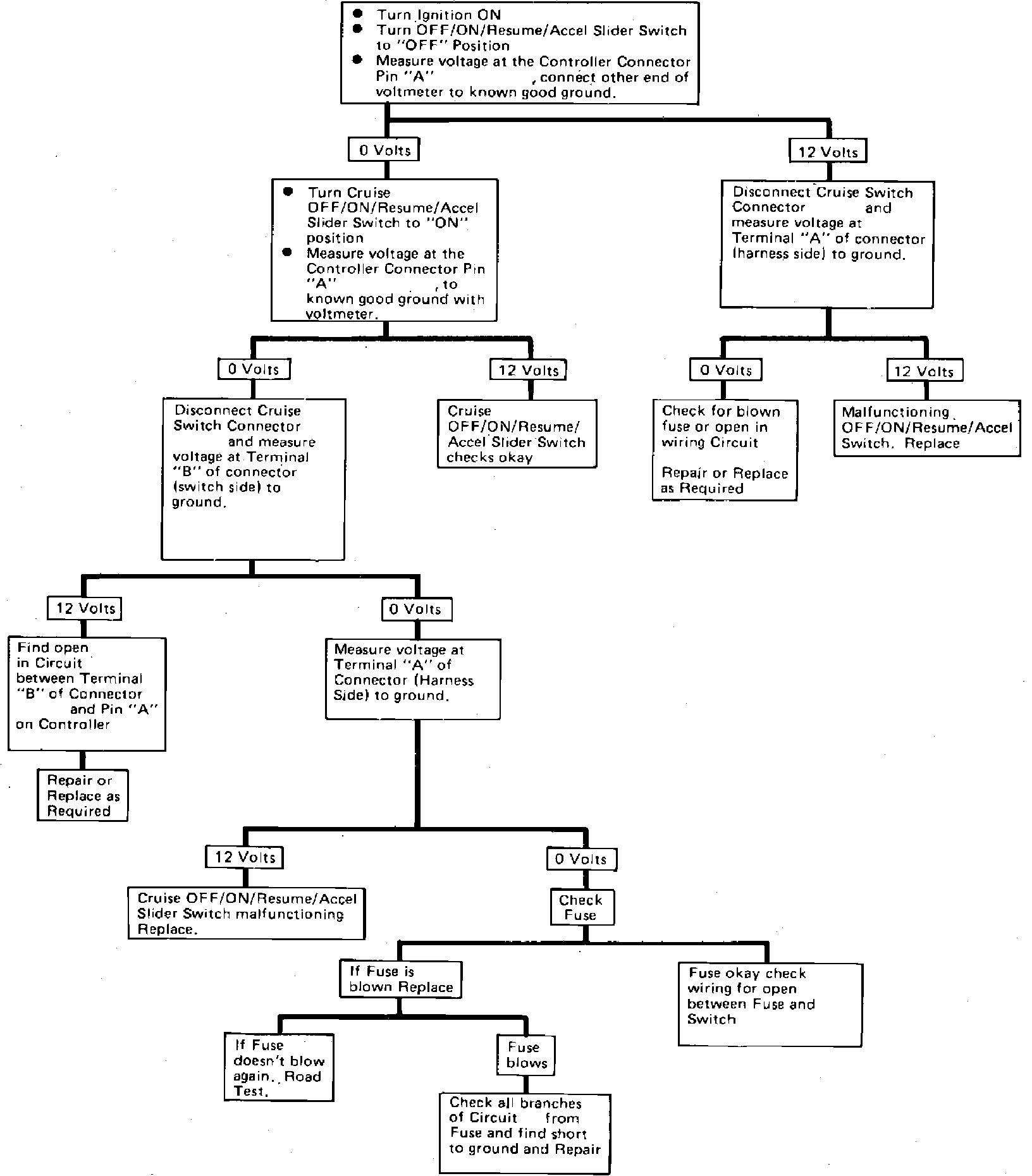

Fig. 15 On/Off/Resume/Accel switch diagnostic chart. Custom Cruise III:
Refer to
Fig. 15
to check Off/On/Resume/Accel switch and related wiring.
