Diesel Data: Automotive Repair

Home >> Chevy Truck >> 1988 >> Astro Van M L4-151 2.5L >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> With Air Conditioning >> Front

Front

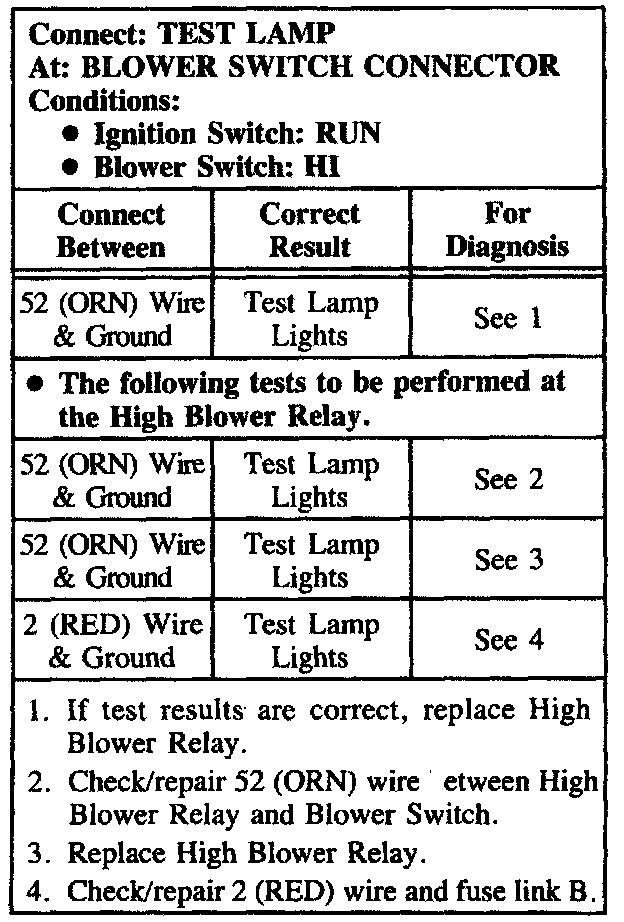

B: BLOWER MOTOR OPERATES ONLY IN HIGH:

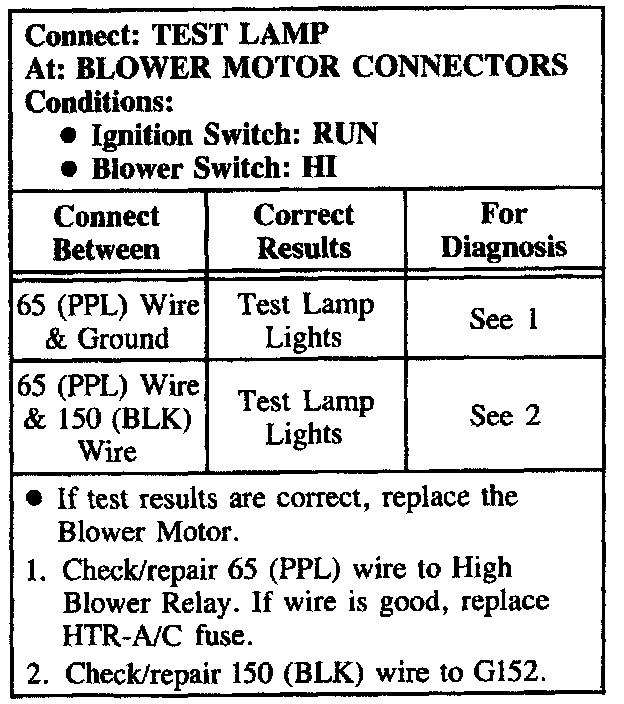

C: BLOWER MOTOR DOES NOT OPERATE IN HIGH:

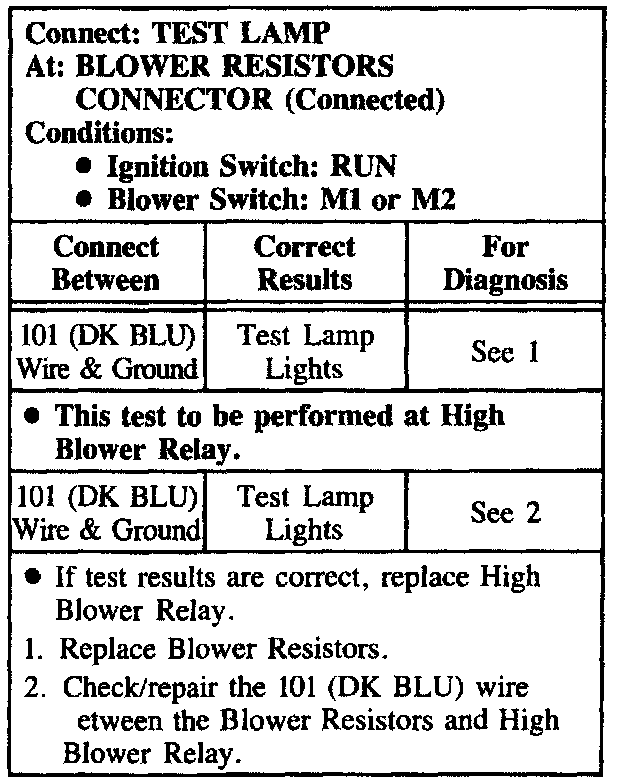

SYSTEM CHECK TABLE:
