Electrical Diagrams

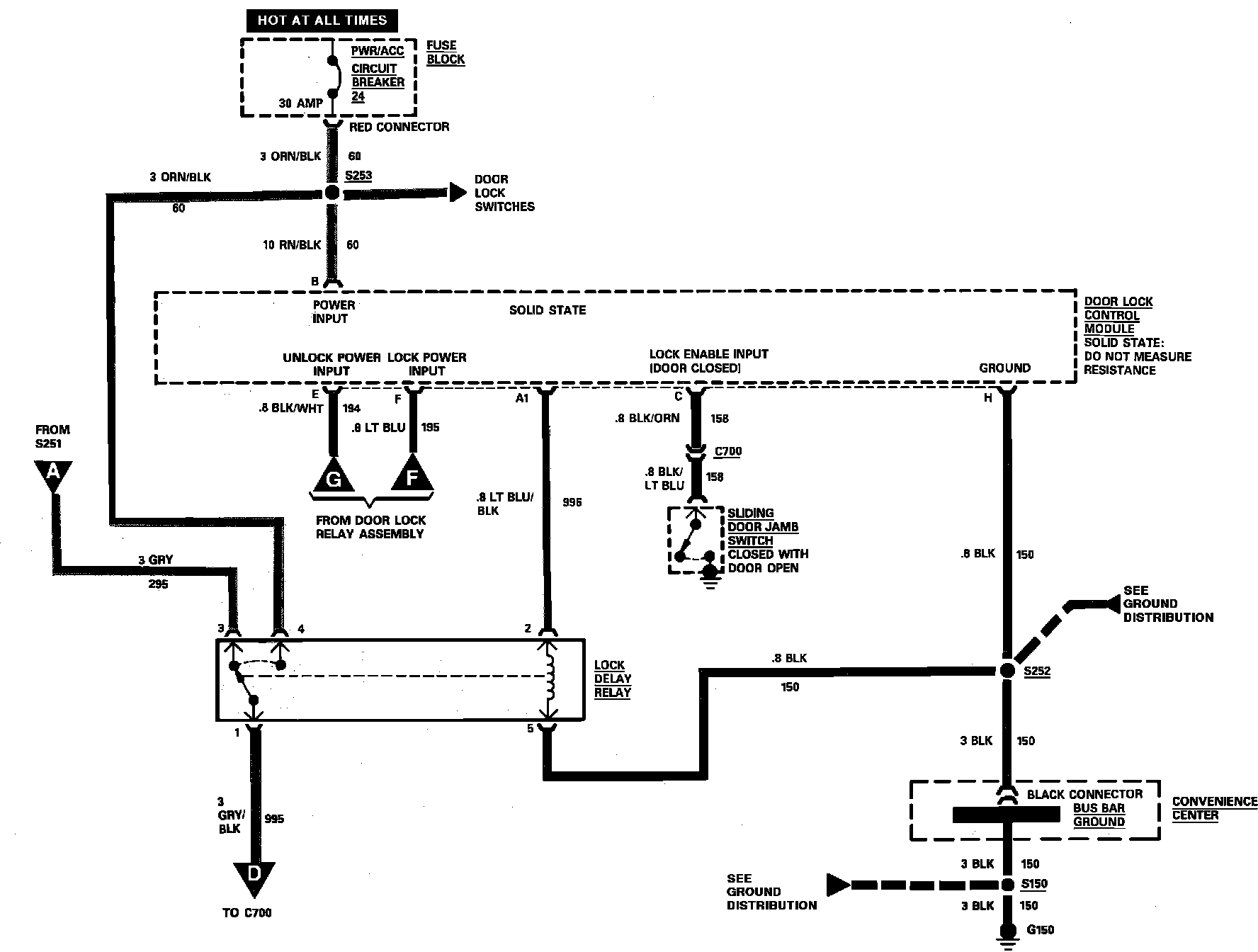

Power Door Locks Wiring Circuit (Part 1 Of 3):

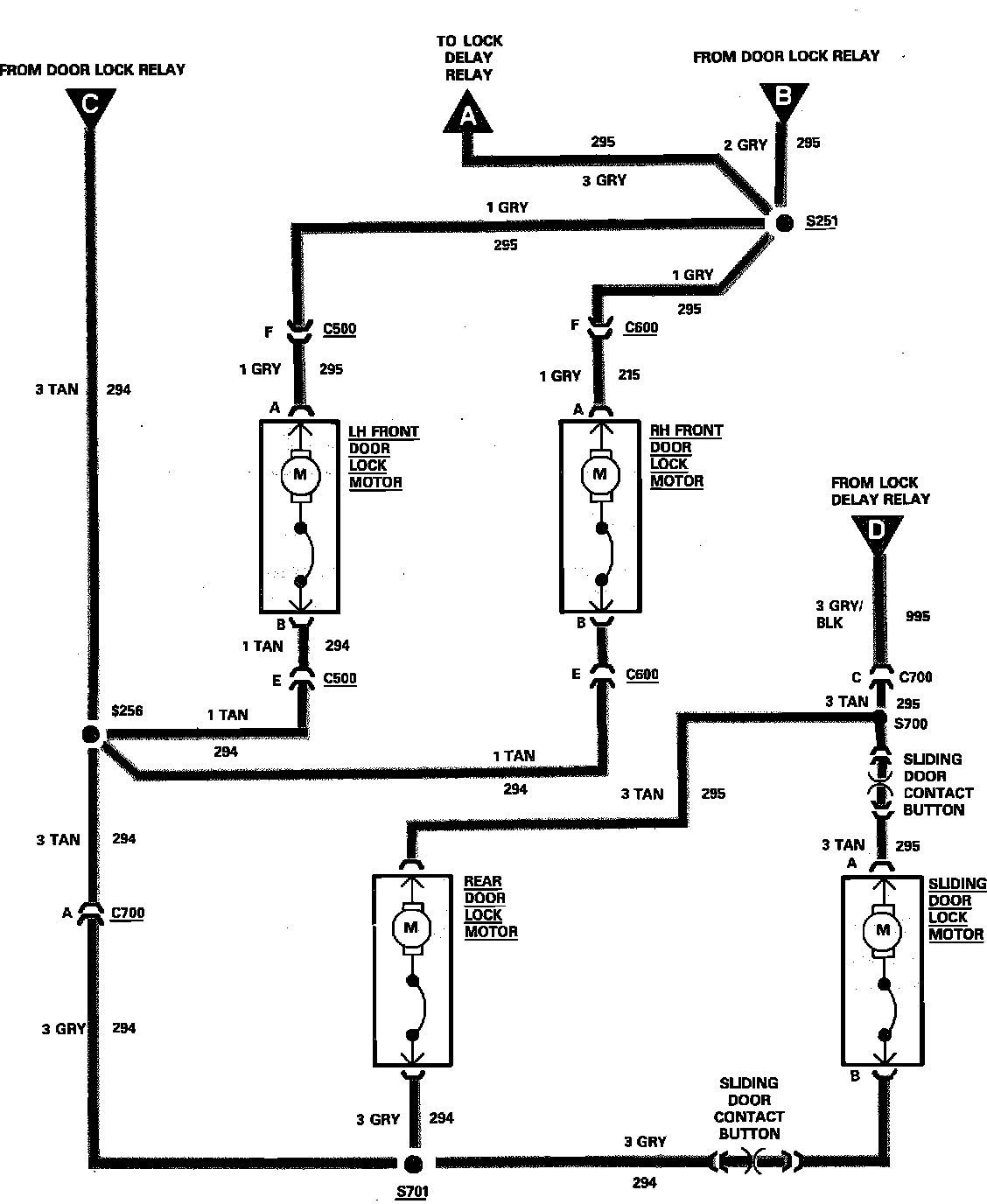

Power Door Locks Wiring Circuit (Part 2 Of 3):

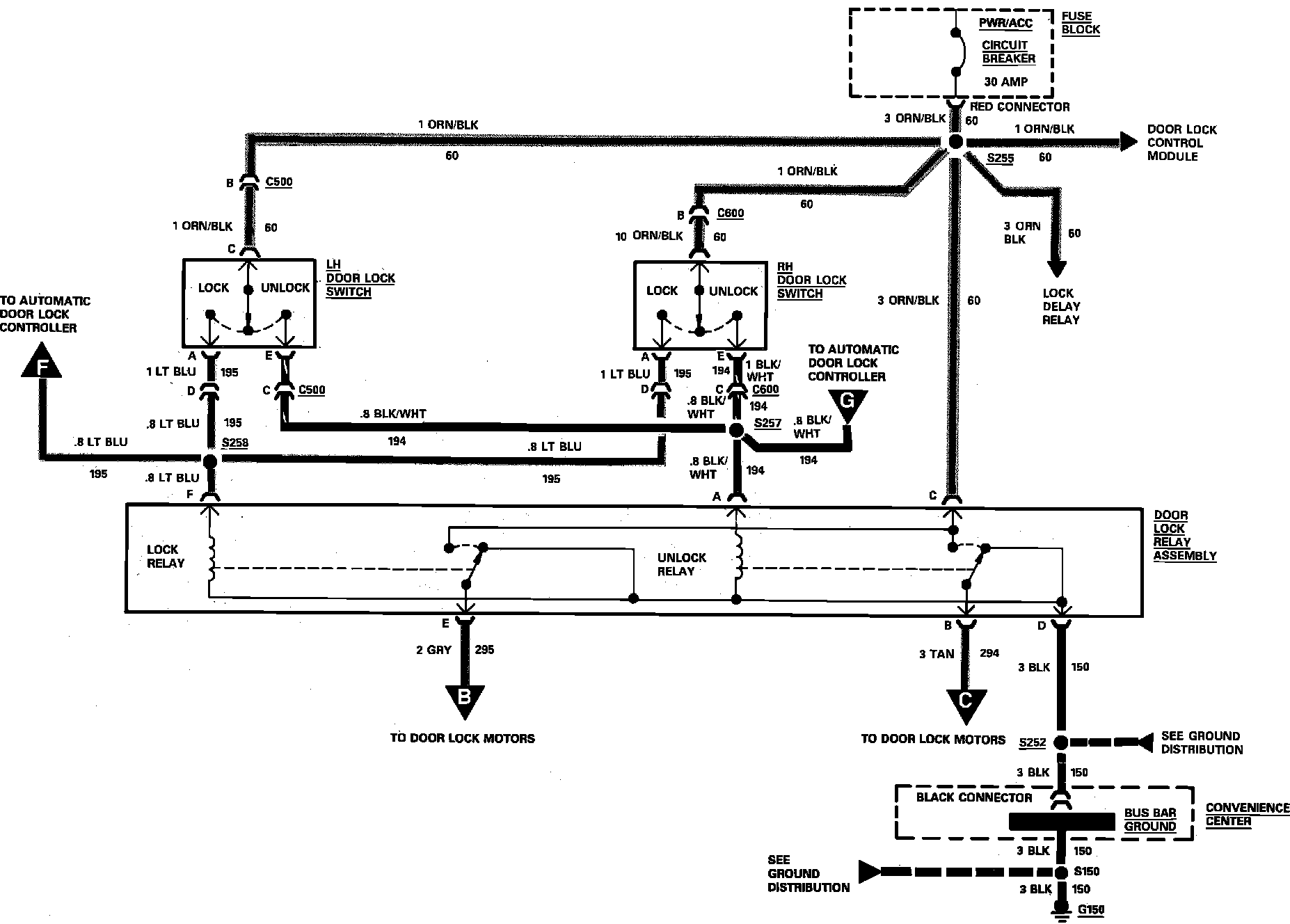

Power Door Locks Wiring Circuit (Part 3 Of 3):
