Astro Van M V6-262 4.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Sensors
>>

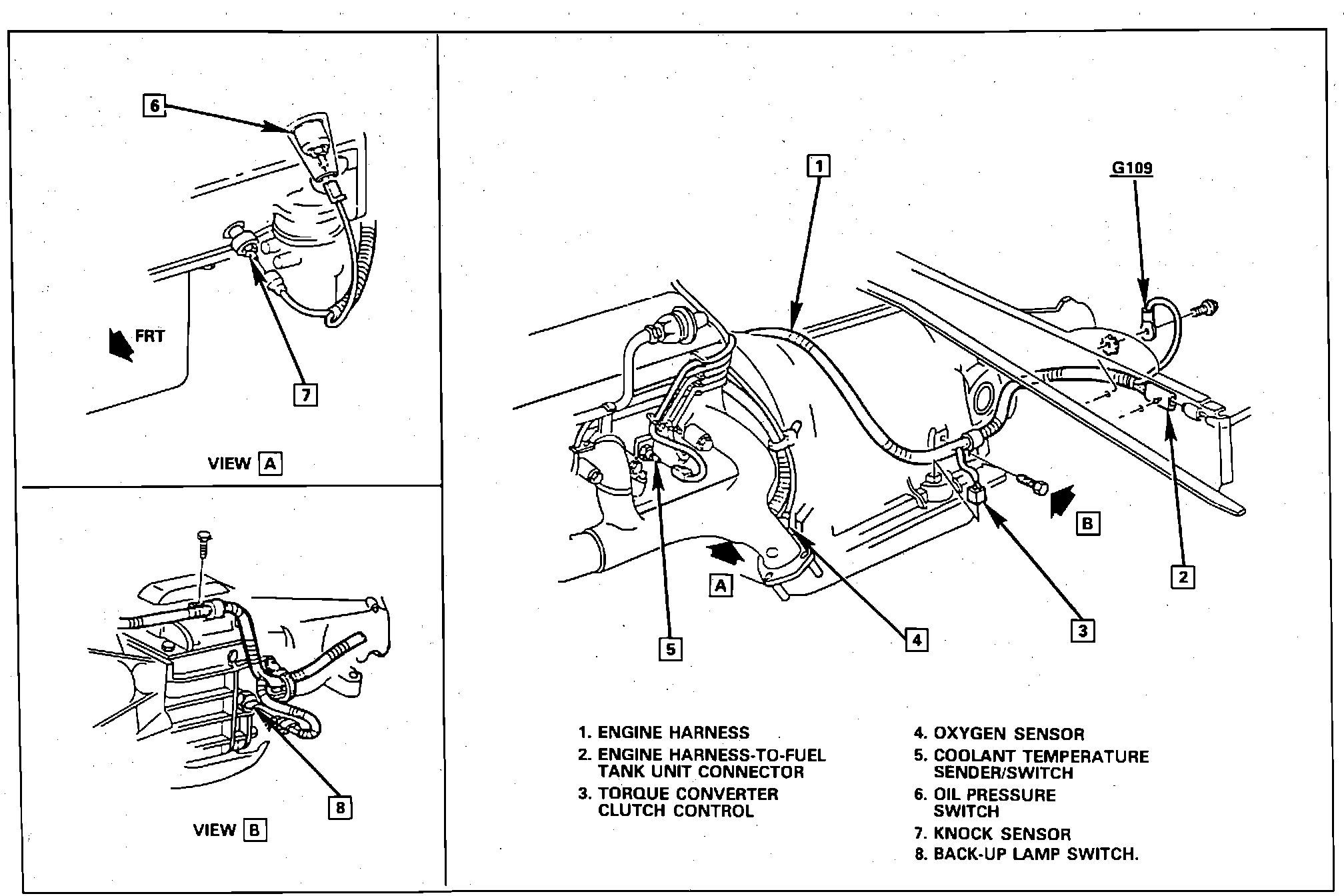

Knock Sensor
Knock Sensor
LH Side Engine Wiring.:
LH Side Of Engine, Below Exhaust Manifold
Applicable to: V6-262/4.3L Engine
