Diesel Data
: Automotive Repair
Home
>>
Chevy Truck
>>
1988
>>
Astro Van M V6-262 4.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
>>
With Air Conditioning
>>
Front
Front

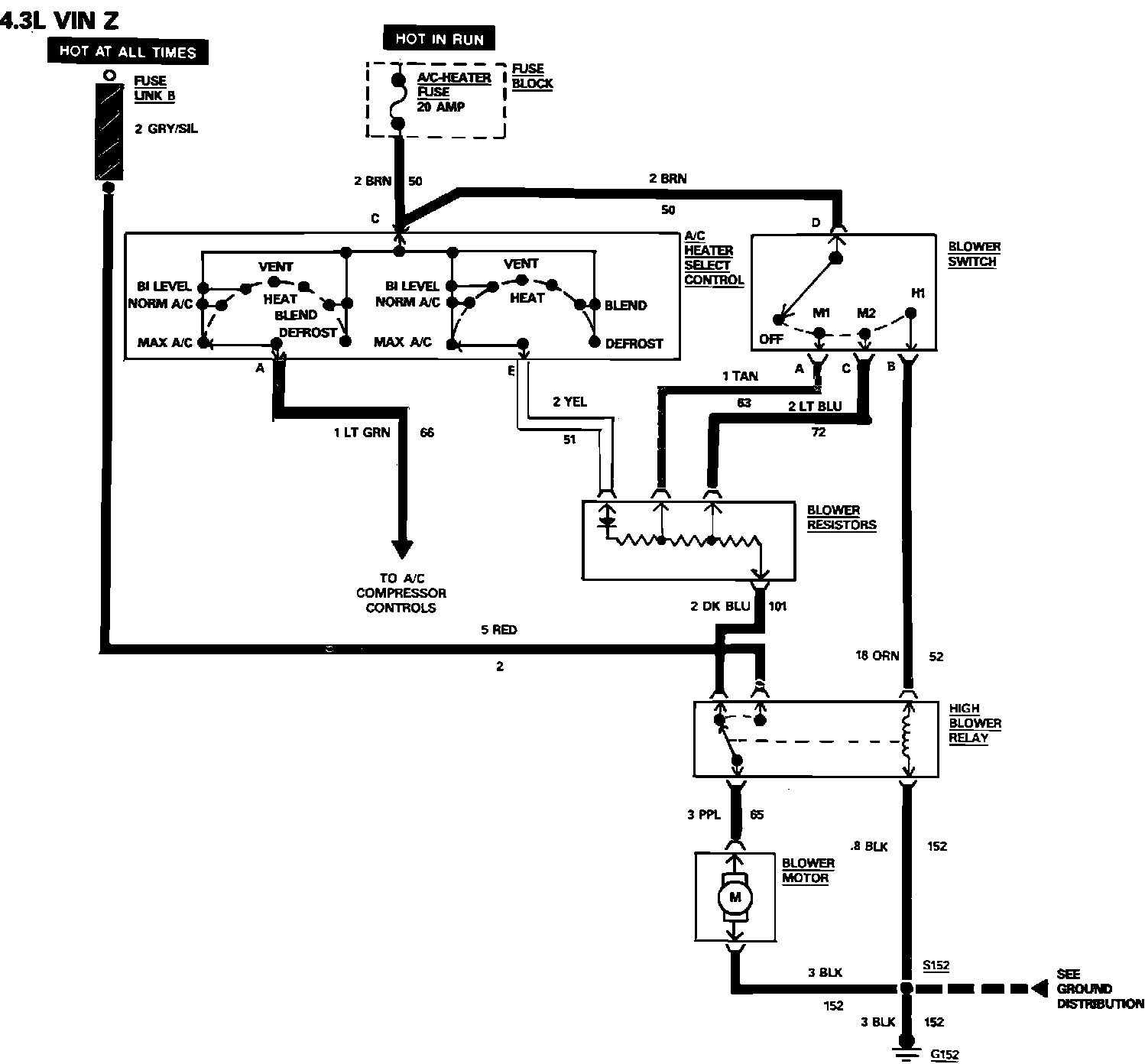

A/C Blower Controls Wiring Circuit:
