Home >> Chevy Truck >> 1988 >> Astro Van M V6-262 4.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Instrument Panel Cluster (IPC) >> Less Gauges

Less Gauges

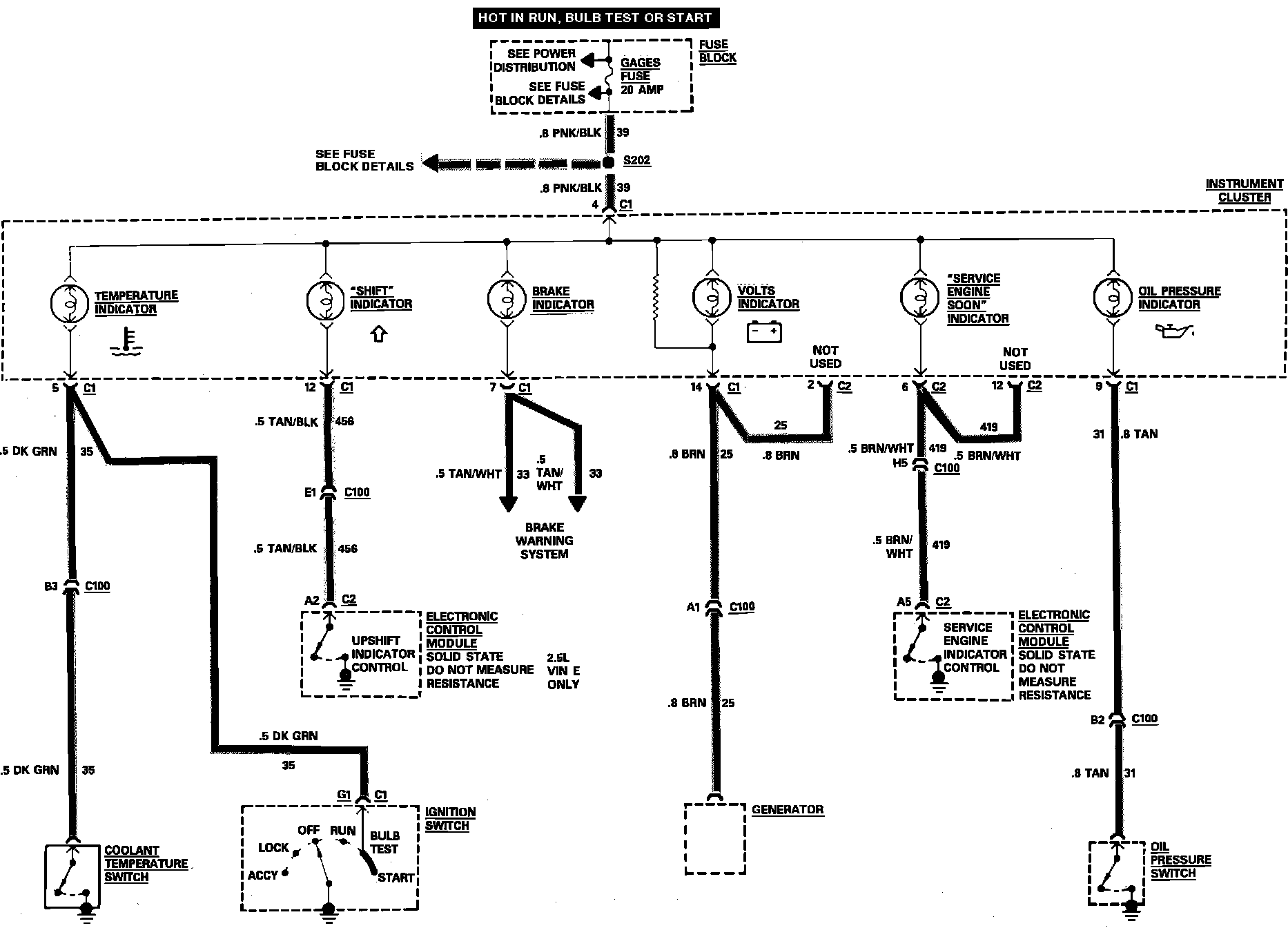

Instrument Panel Cluster Wiring Circuit (Less Gauges):
