Diesel Data
: Automotive Repair
Home
>>
Chevy Truck
>>
1988
>>
Astro Van M V6-262 4.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Instrument Panel Cluster (IPC)
>>
Speedometer
Speedometer

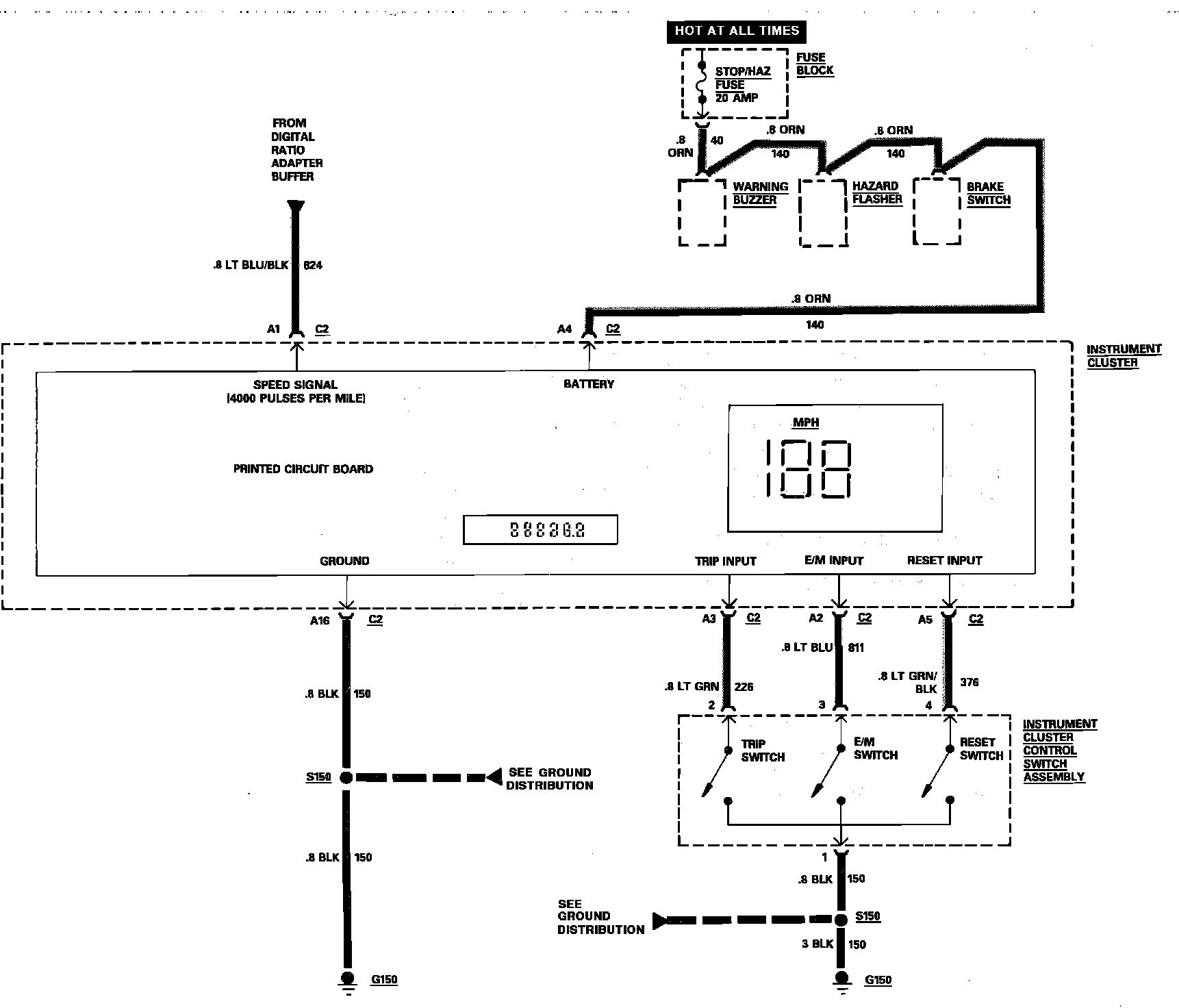

Speedometer (W/Electronic Cluster):
