Diesel Data
: Automotive Repair
Home
>>
Chevy Truck
>>
1988
>>
Astro Van M V6-262 4.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>

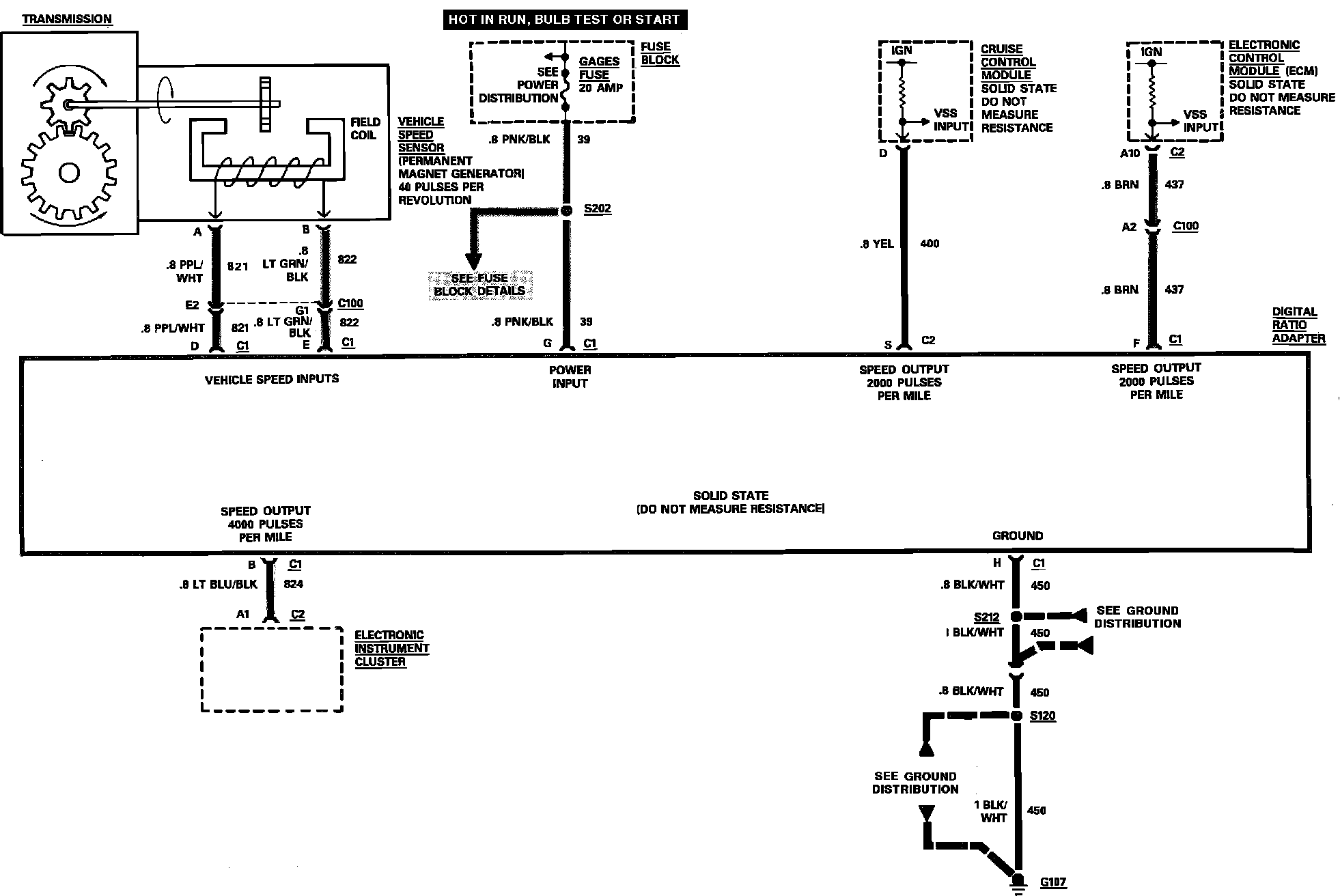

Vehicle Speed Sensor (VSS)
>>
With Electronic Cluster
With Electronic Cluster
W/Electronic Cluster:
