Home >> Chevy Truck >> 1988 >> Astro Van M V6-262 4.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> With Cassette

With Cassette

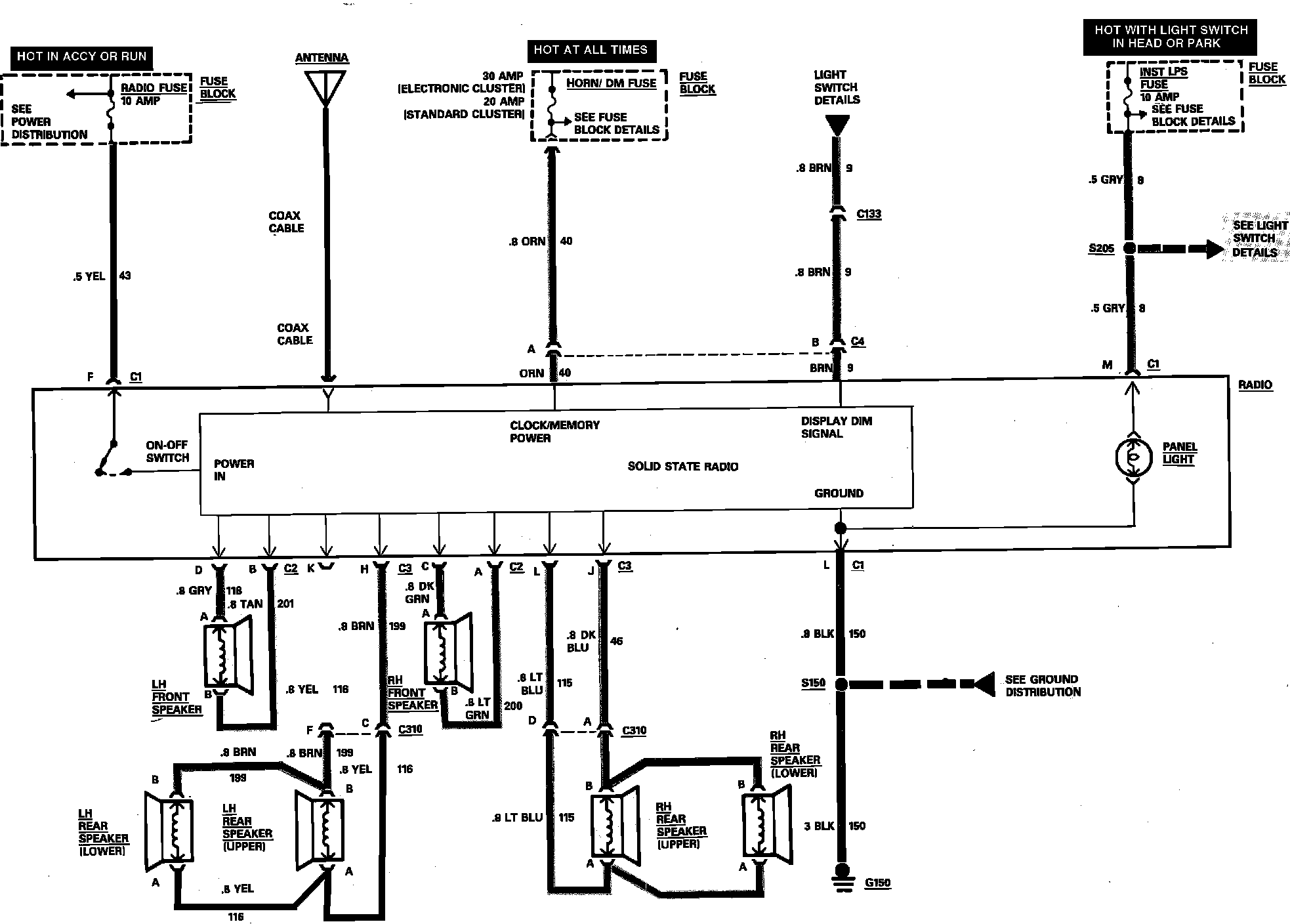

Radio Wiring Circuit (With Cassette):
