Diesel Data
: Automotive Repair
Home
>>
Chevy Truck
>>
1988
>>
Astro Van M V6-262 4.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>

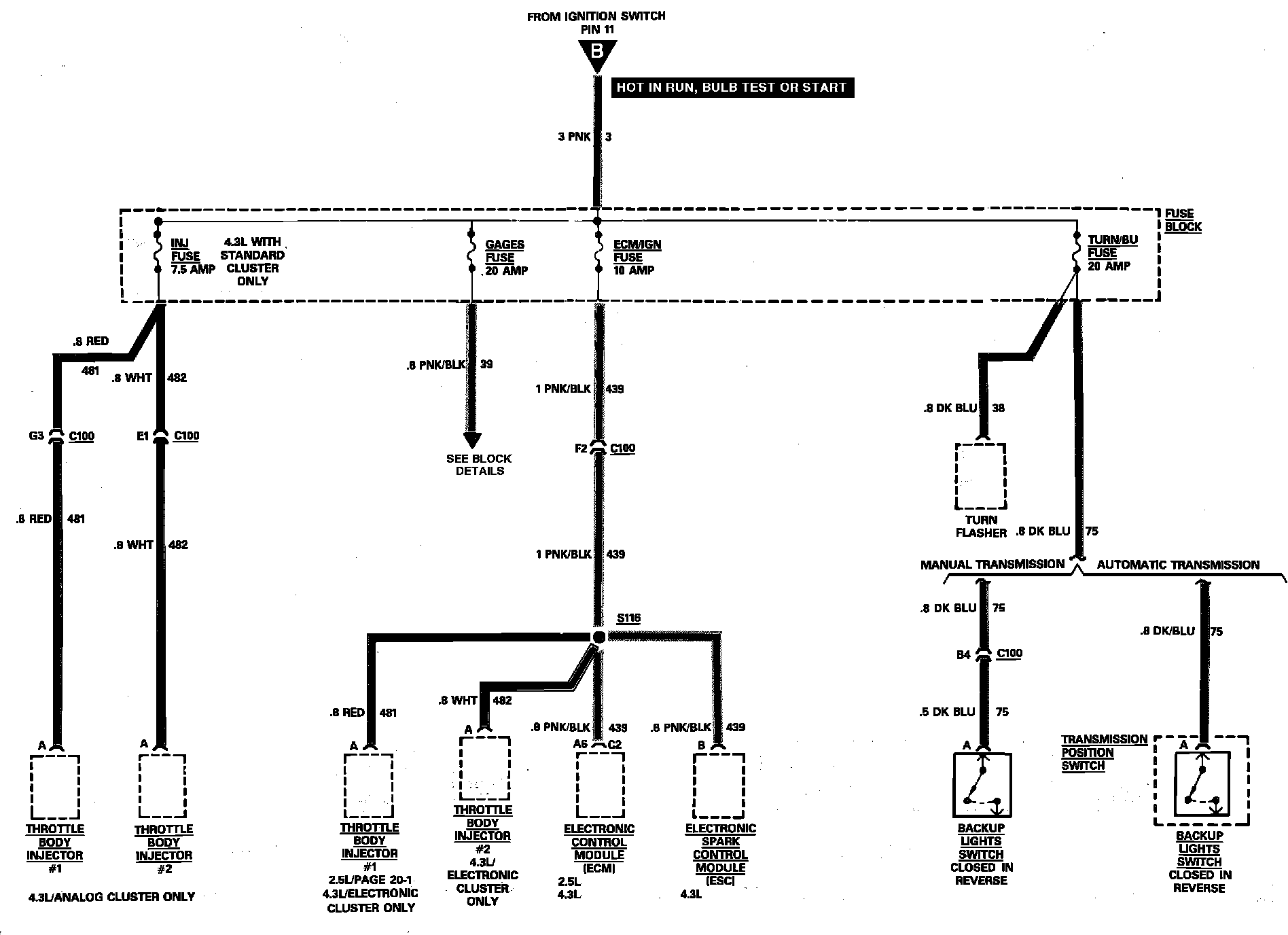

Fuel Inject, ECM Ignition & Turn/Back-Up Fuse
Fuel Inject, ECM Ignition & Turn/Back-Up Fuse
Fuel Inject, ECM Ignition & Turn/Back-Up Fuse:
