Chevy Truck
>>
1988
>>
Astro Van M V6-262 4.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
With Delay
With Delay

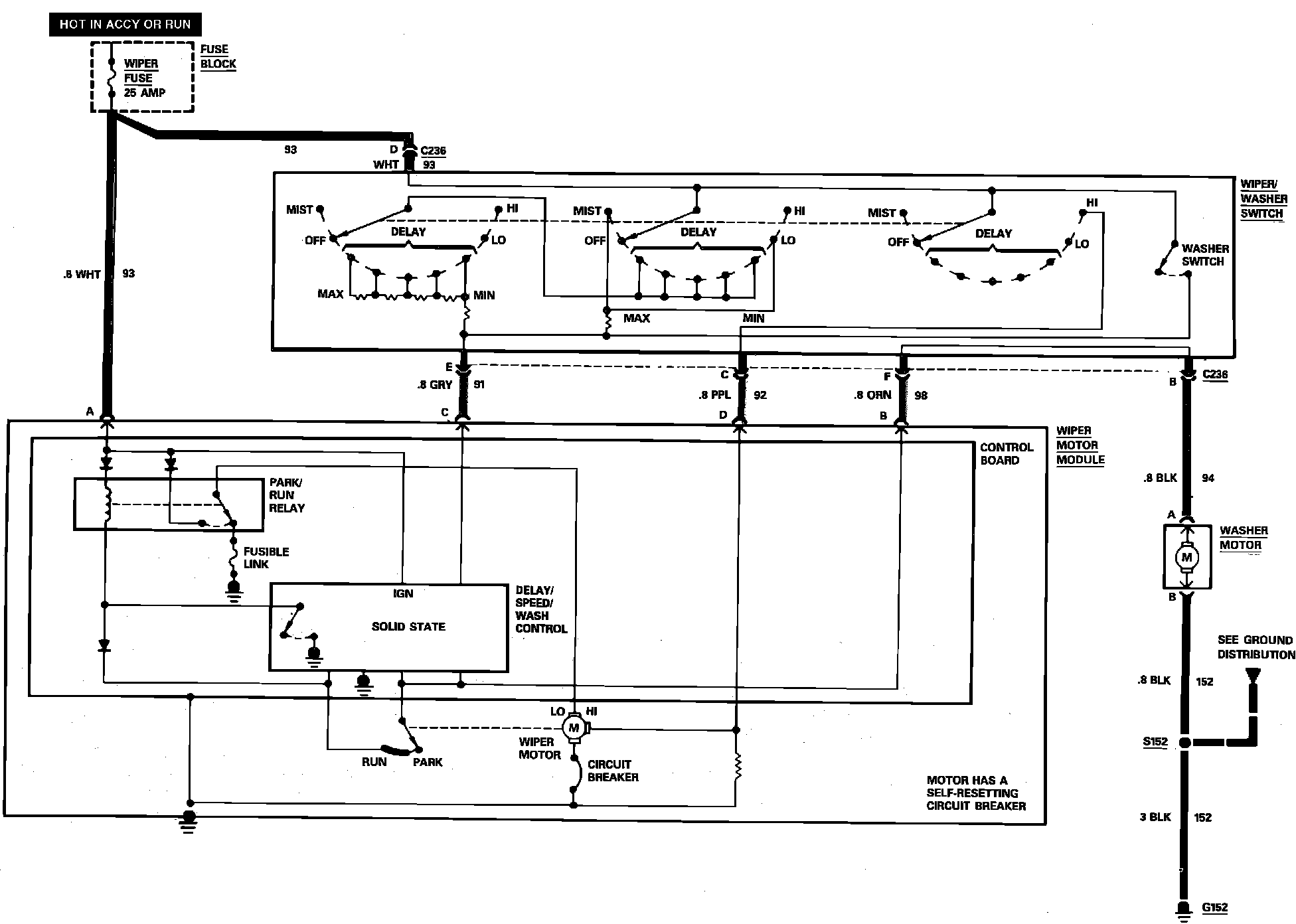

Wiper/Washer Delay Wiring Circuit:
