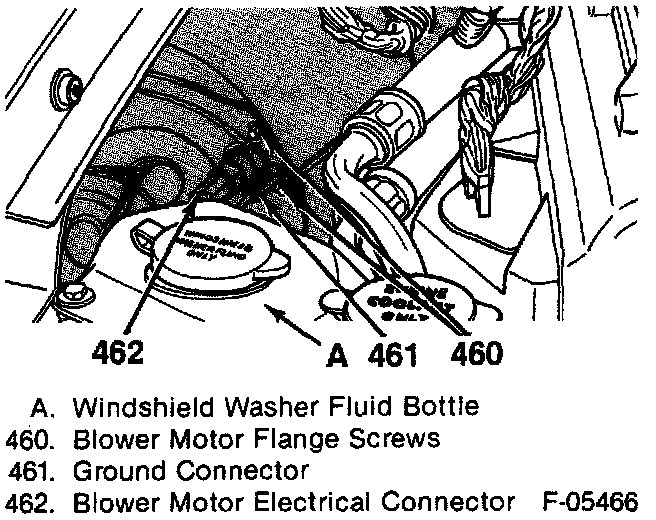

Figure 31-Blower Motor Electrical Connectors Removal:

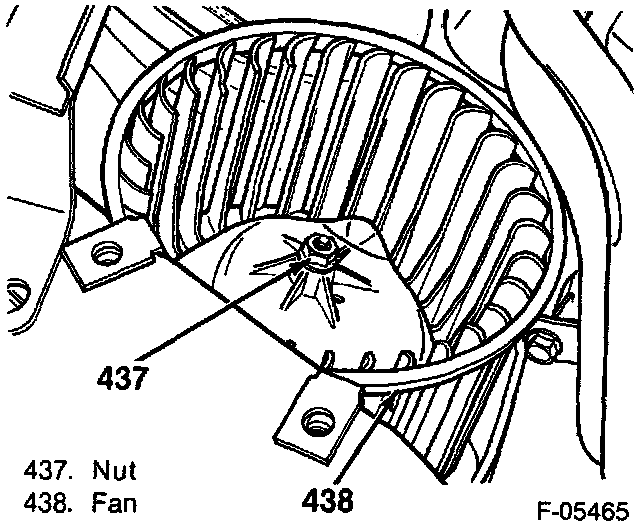

Figure 32-Nut and Fan Removal:

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Windshield washer fluid bottle (A).
3. Electrical connections (461 and 462).
4. Blower motor flange screws.
5. Nut (437) from the blower motor (440).
6. Fan (438) from the blower motor (440).
7. Spacer (439).
8. Blower motor (440).

INSTALL OR CONNECT
1. Blower Motor (440).
2. Space (439).
3. Fan (438) to the blower motor (440).
4. Nut (437) to the blower motor (440).
5. Blower motor flange screws.
6. Electrical connections (461 and 462).
7. Windshield washer fluid bottle (A).
8. Negative battery cable.
