Rear

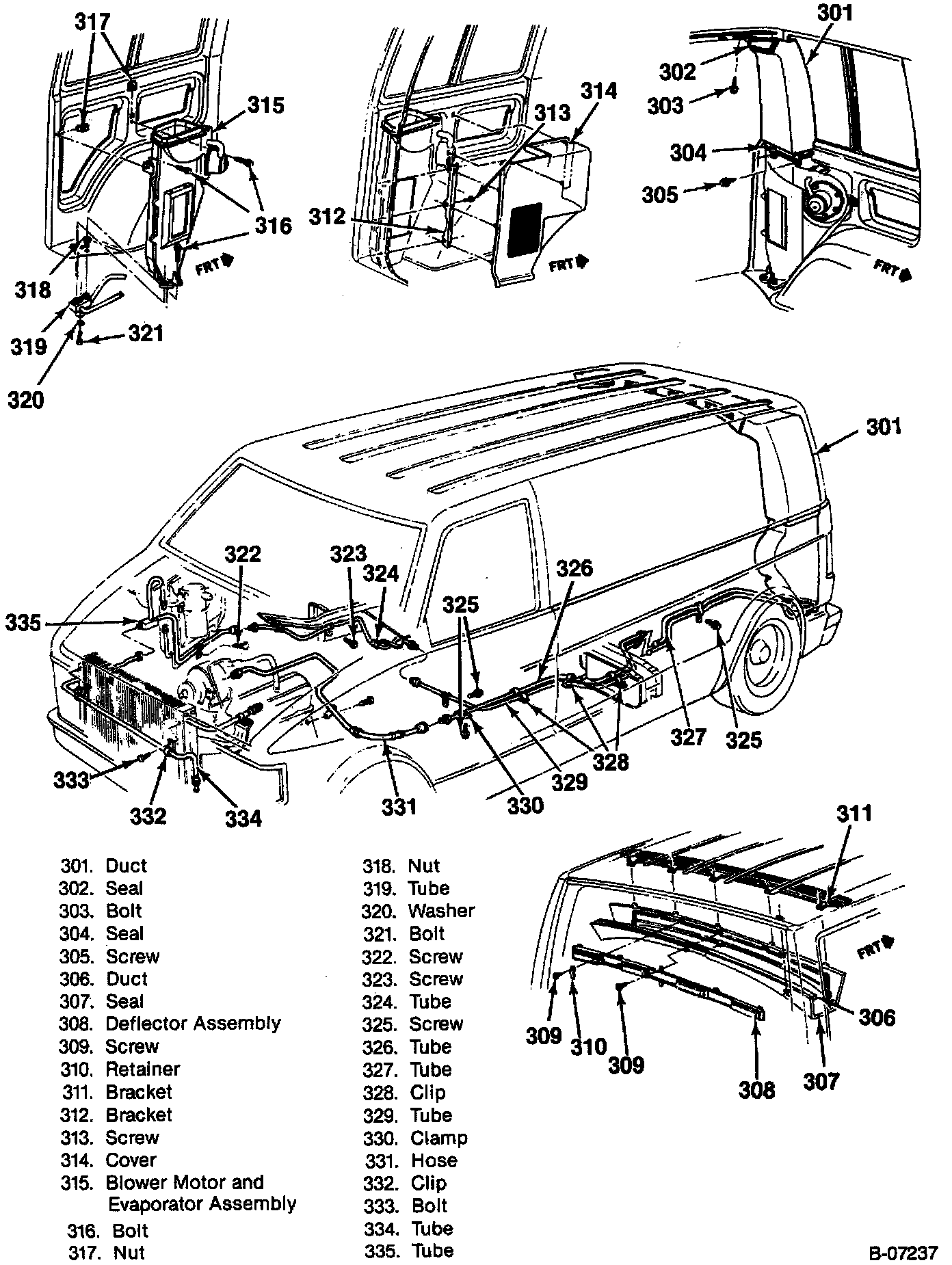

Figure 40-Rear Overhead System Component View:

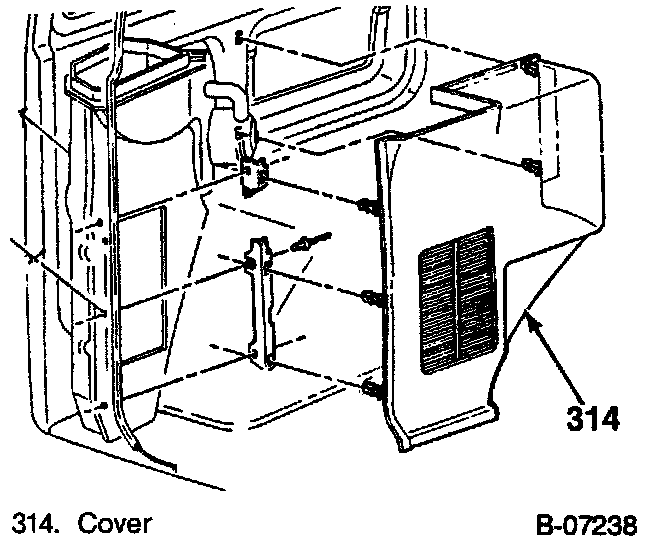

Figure 41-Cover Removal:

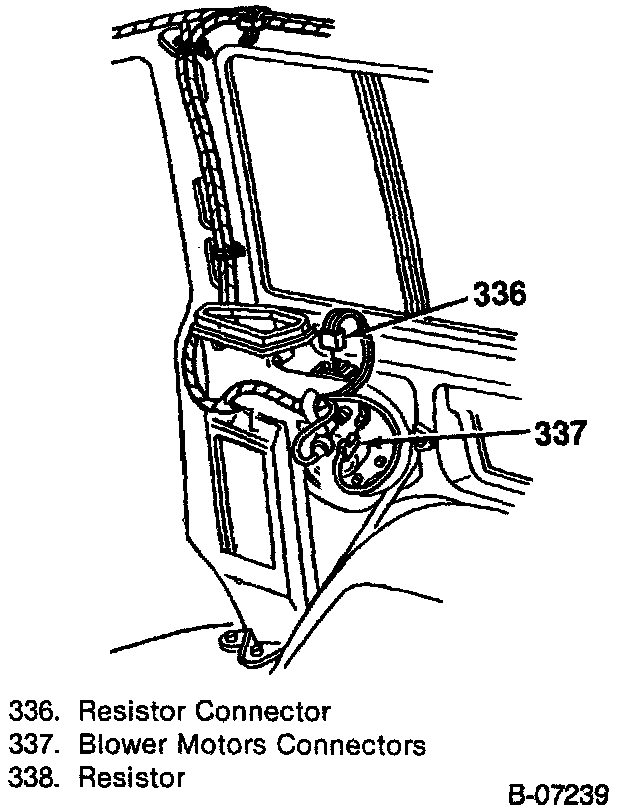

Figure 42-Rear Wiring Harness:

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Storage box.
3. Cover (314).
4. Electrical connections (336 and 337).
5. Blower motor flange screws.
6. Blower motor.

INSTALL OR CONNECT
1. Blower motor.
2. Blower motor flange screws.
3. Electrical connections (336 and 337).
4. Cover (314).
5. Storage box.
5. Cover assembly (314).
6. Negative battery cable.
