Diesel Data: Automotive Repair
Home >> Chevy Truck >> 1988 >> Astro Van M V6-262 4.3L >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor >> Testing and Inspection >> Component Tests and General Diagnostics

Component Tests and General Diagnostics

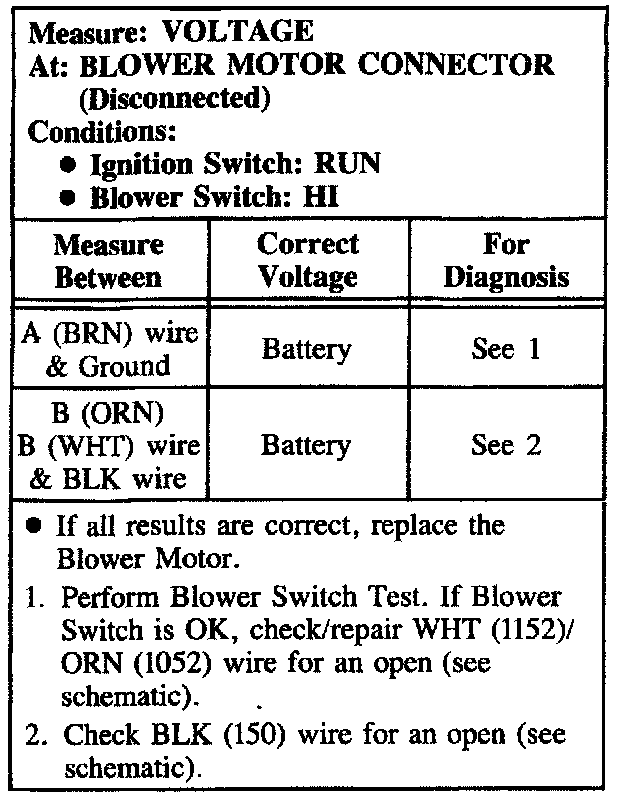

A: BLOWER MOTOR TEST:

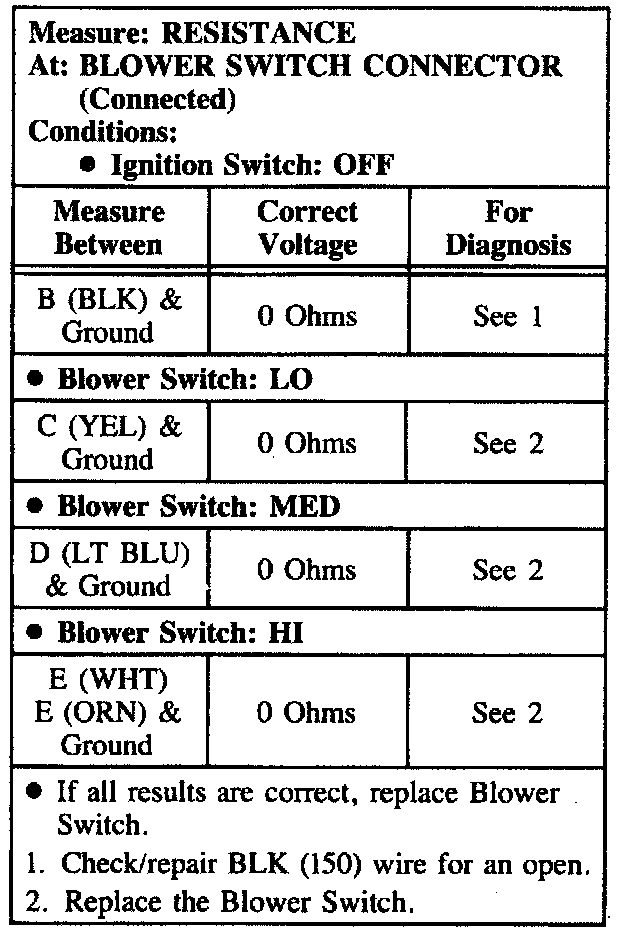

B: BLOWER SWITCH TEST:

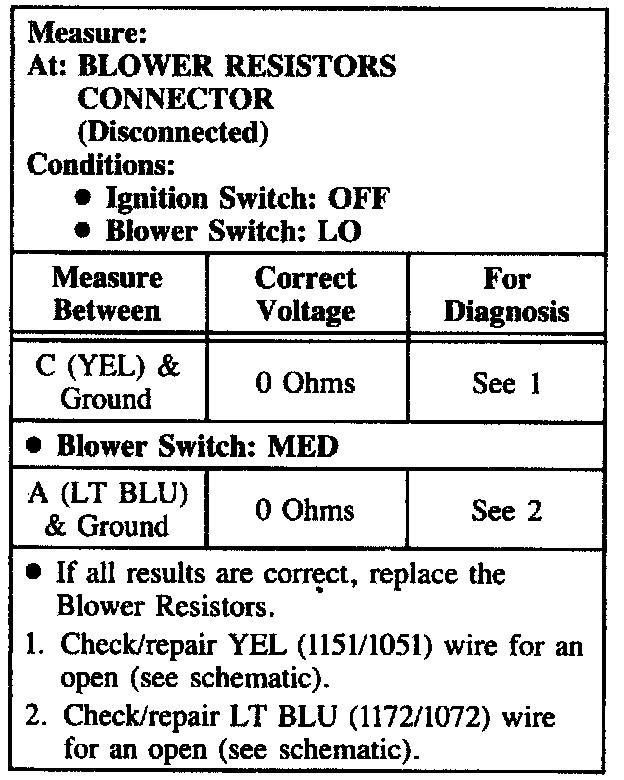

C: BLOWER RESISTORS TEST:
