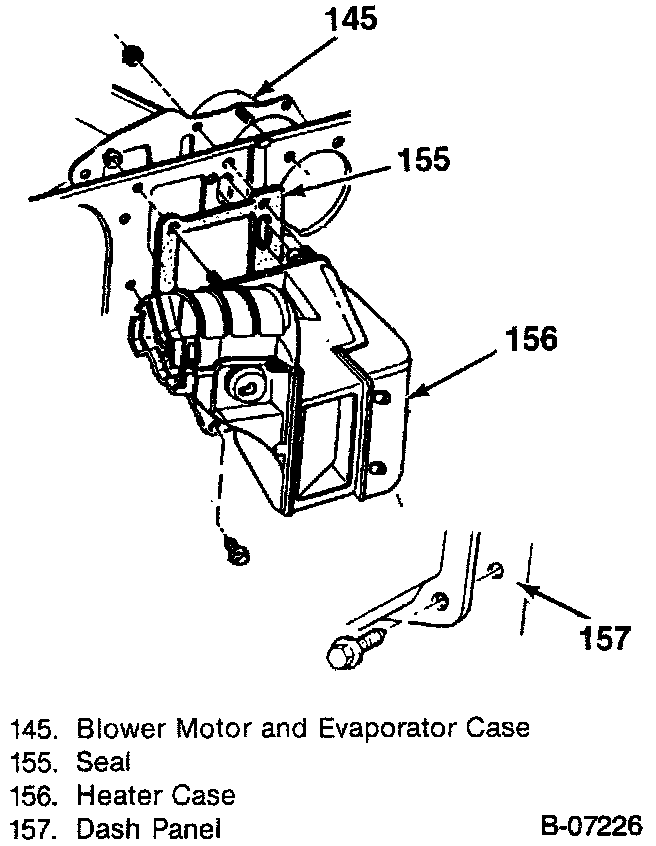

Figure 34-Heater Assembly Replacement:

Figure 27-Air Conditioning Assembly Component View:

REMOVE OR DISCONNECT
1. Drain coolant.
2. Coolant bottle.
3. Windshield washer fluid bottle.
4. Heater hoses.
^ Plug or cap hoses.
5. Instrument panel lower right filler panel (123).
6. Distributor duct.
^ Engine cover.
7. Air duct.
8. Vacuum lines.
9. Control cables.
10. Mounting nuts.
11. Heater assembly.
12. Core cover plate.
13. Core.


INSTALL OR CONNECT
1. Core.
2. Core cover plate.
3. Heater assembly. Tighten mounting nuts to 8 Nm (71 lb in).
4. Air duct.
5. Distributor duct.
6. Vacuum lines.
7. Control cables.
8. Instrument panel lower right filler panel.
9. Heater hoses.
10. Windshield washer fluid bottle.
11. Engine coolant overflow bottle.
12. Coolant to the radiator.
