Chevy Truck
>>
1988
>>
Astro Van M V6-262 4.3L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Diagnosis By Symptom
>>
Insufficient Cooling
>>
Chart B
Chart B

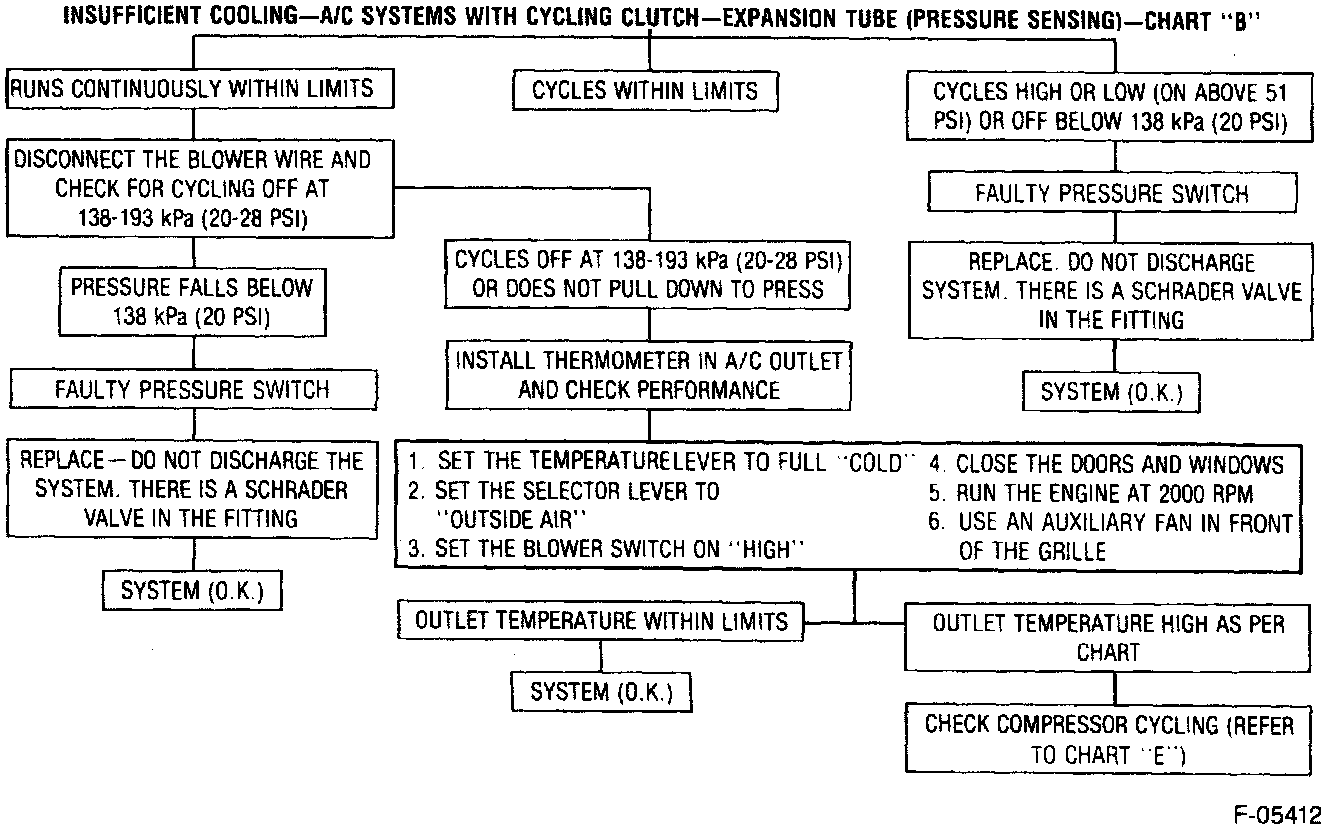

Figure 10-Insufficient Cooling Diagnosis - Chart B:
