1988
>>
Astro Van M V6-262 4.3L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel Cluster (IPC)
>>
Fuel Gauge & Voltmeter
>>
With Electronic Cluster
With Electronic Cluster

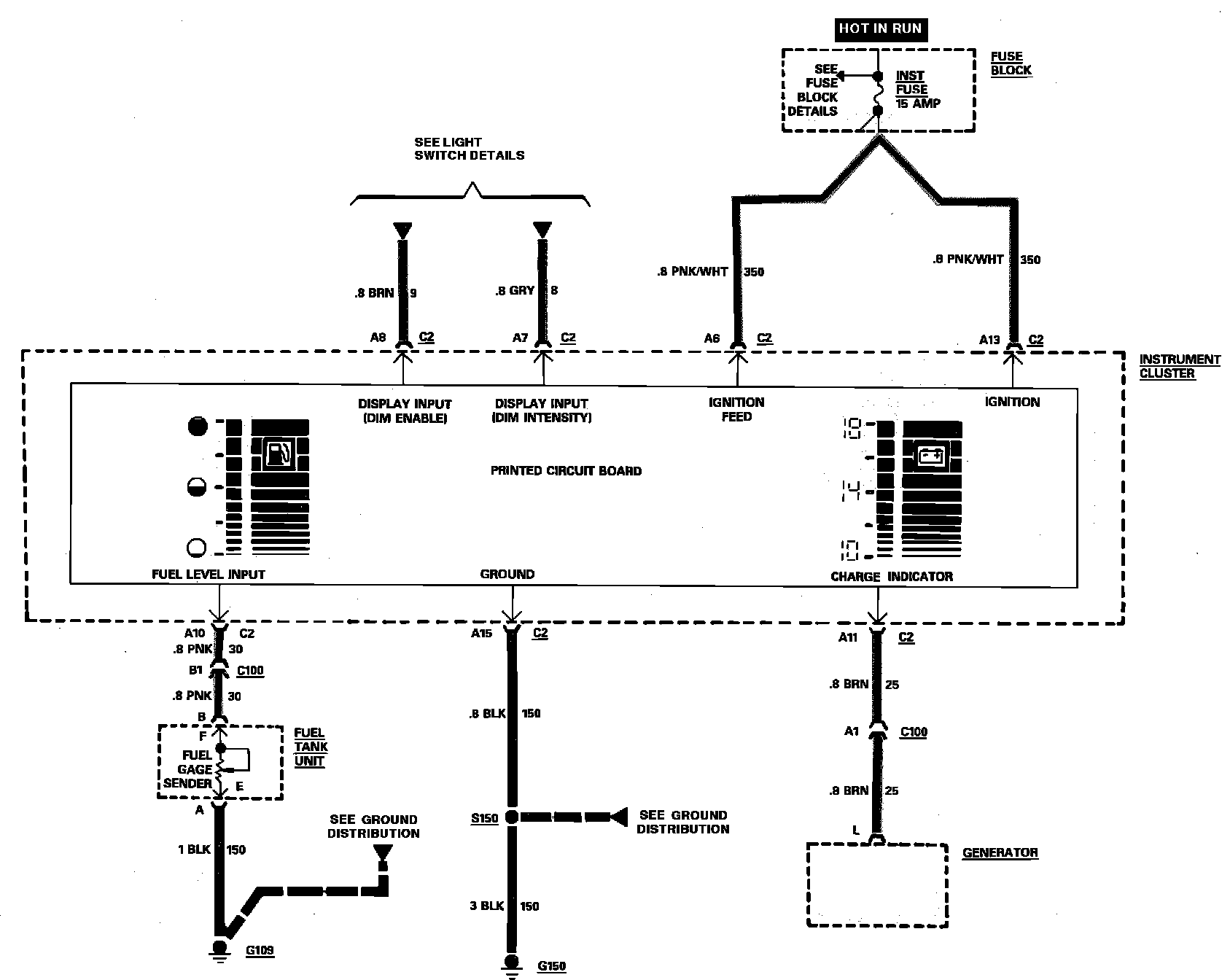

Fuel Gauge & Voltmeter (W/Electronic Cluster):
