Instrument Panel Cluster (IPC)
>>
With Gauges
With Gauges

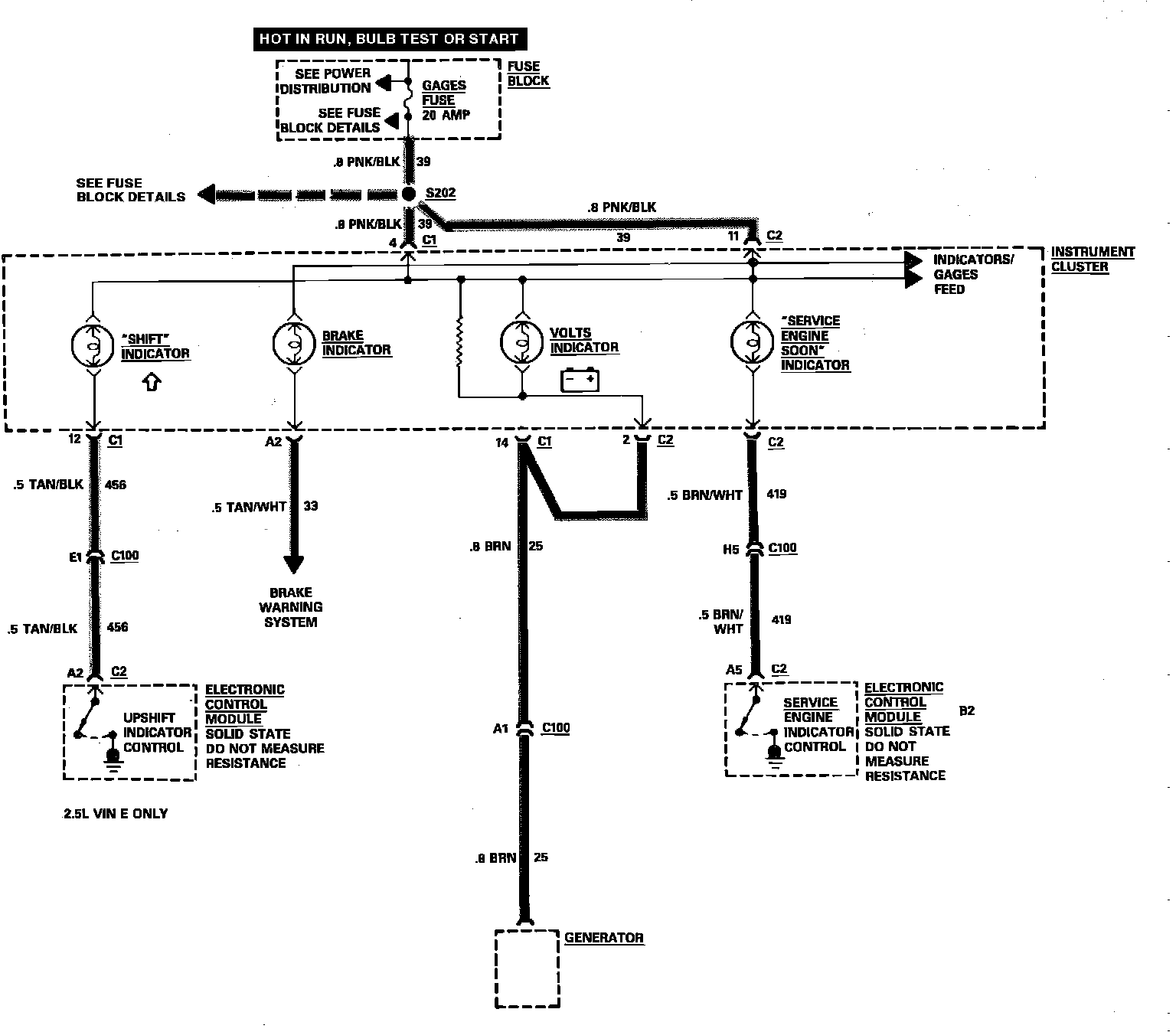

Instrument Panel Cluster Wiring Circuit (W/Gauges):
