Ground Distribution
>>
G150
>>
W/Electronic Cluster
W/Electronic Cluster

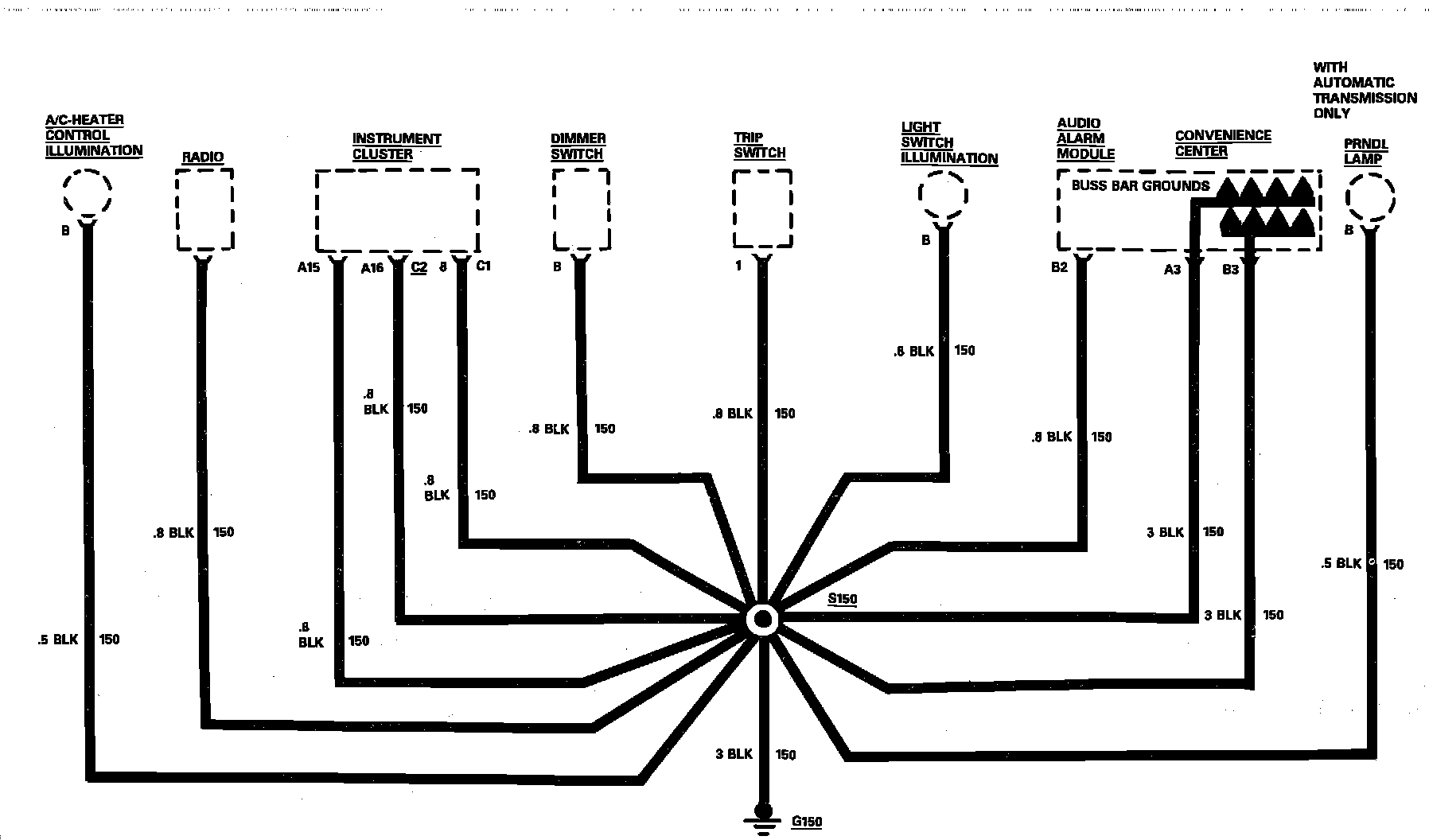

Ground Distribution (G150, W/Electronic Cluster):
