Oil Pressure Sensor: Locations

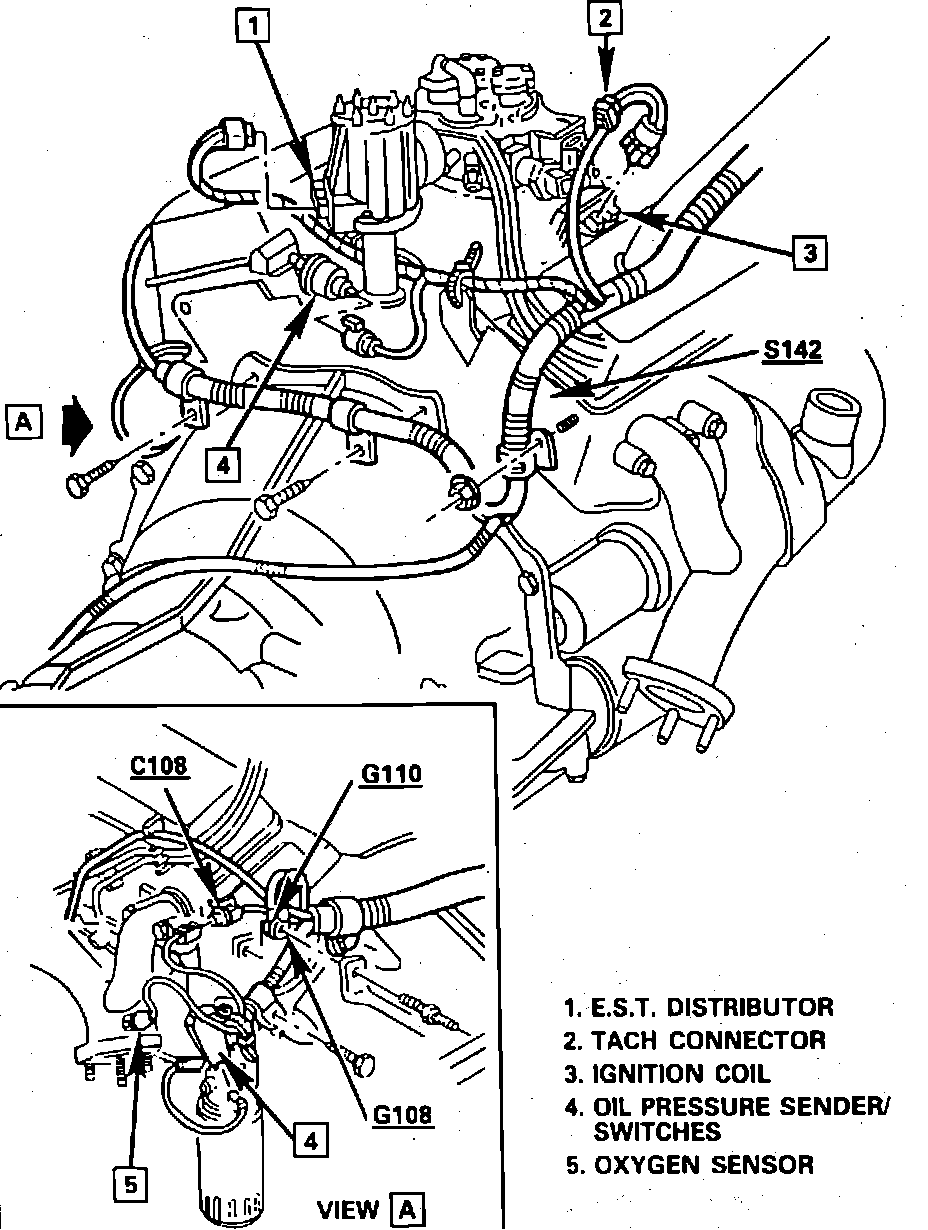

Rear Of Engine Wiring:




LH Side Of Engine, Near Distributor

LH Side Engine Wiring.:




LH Side Of Engine, Near Distributor

Applicable to: V6-262/4.3L Engine
