Chevy Truck
>>
1988
>>
Blazer Full Size V8-379 6.2L DSL
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Marker Lamp
>>
Diagrams
>>
Electrical Diagrams
>>
Marker Lamp Harness
Marker Lamp Harness

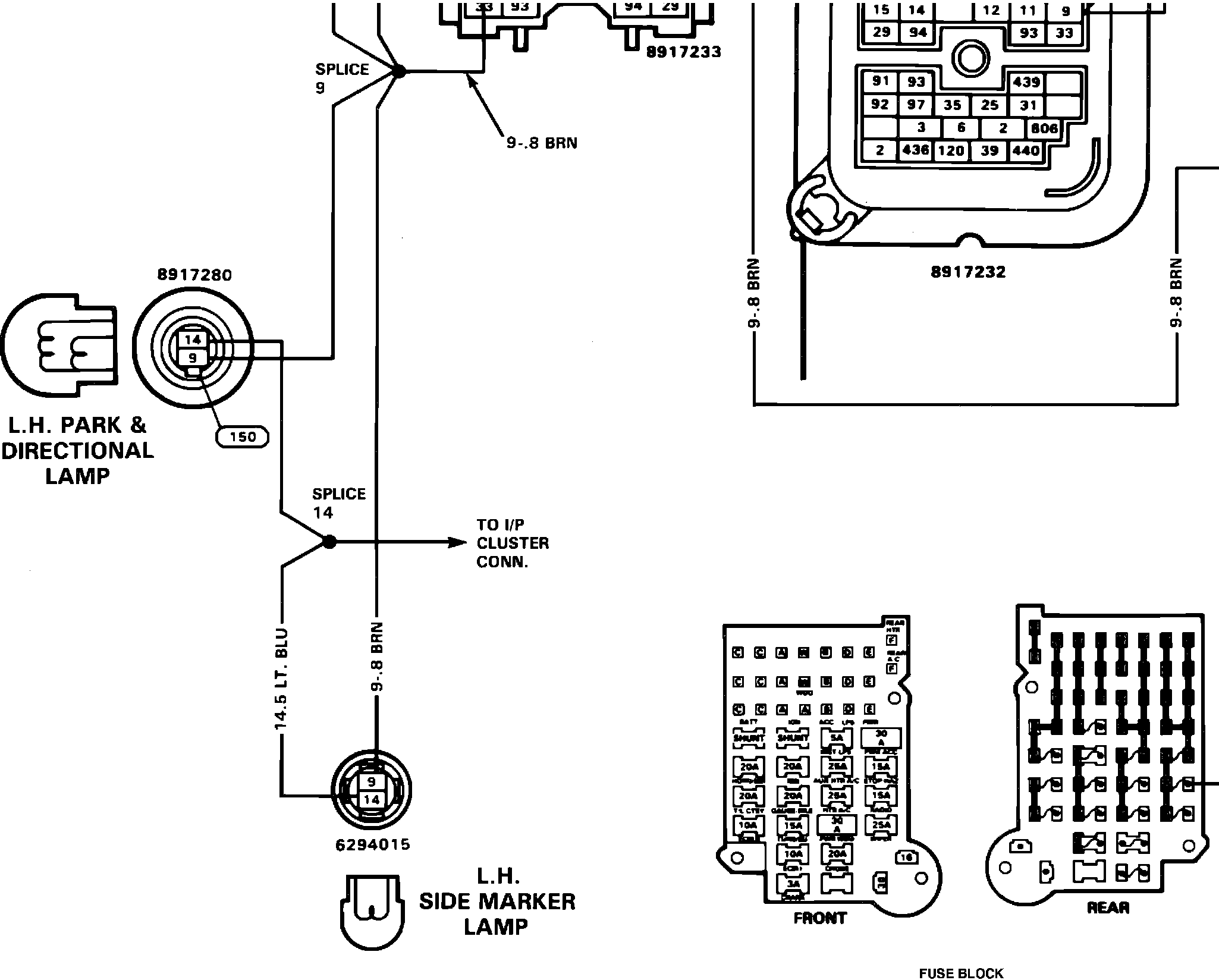

U��Dѥ�D��DExter Lamp Wiring Circuit (Marker Lamp Harness):
