Instrument Panel, Gauges and Warning Indicators
>>
Fuel Gauge
>>
Electrical Diagram
Electrical Diagram

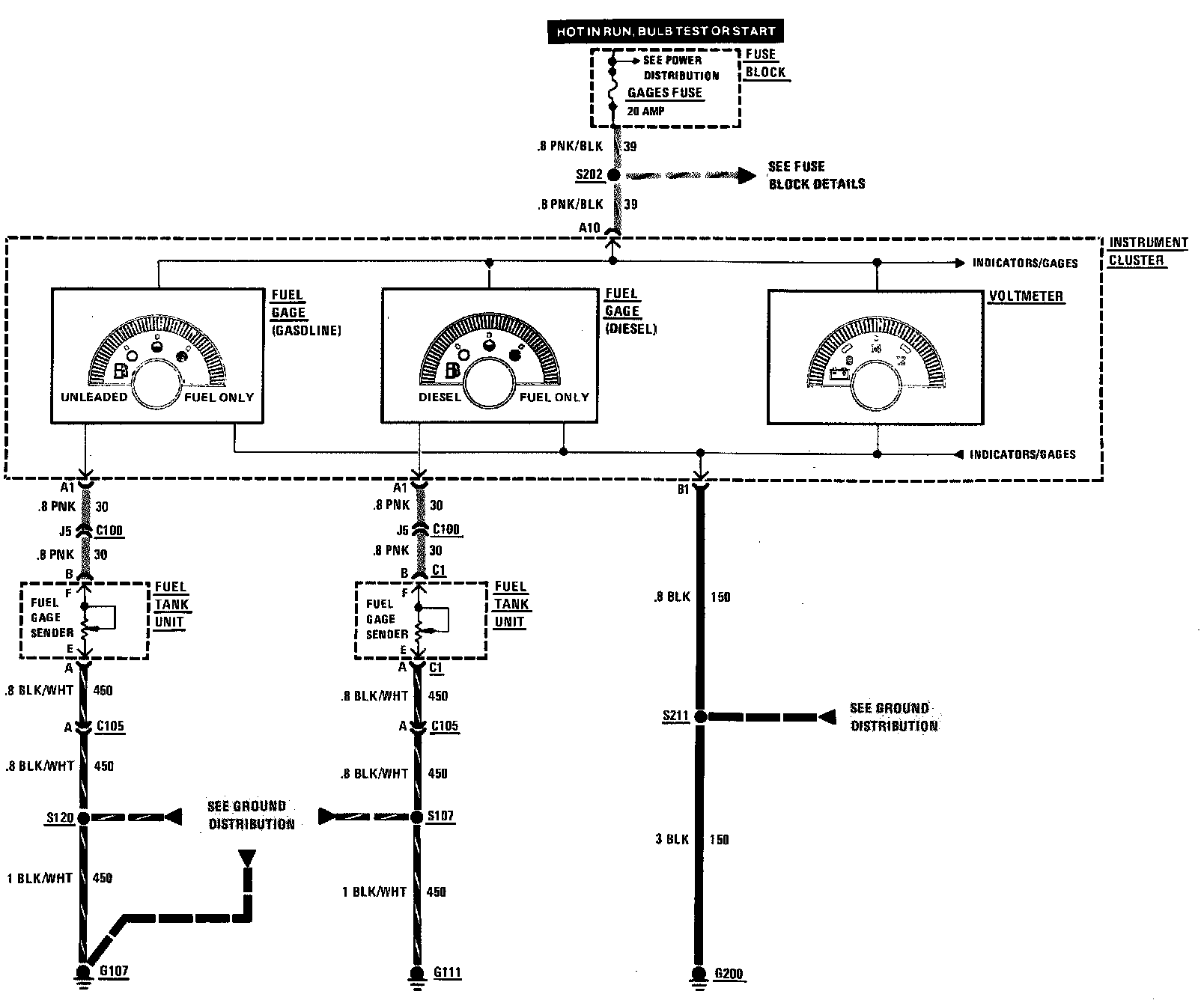

Fuel Gauge And Voltmeter:
