Diesel Data
: Automotive Repair
Home
>>
Chevy Truck
>>
1988
>>
C 1500 Truck 2WD V6-262 4.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Brake Lamp
>>

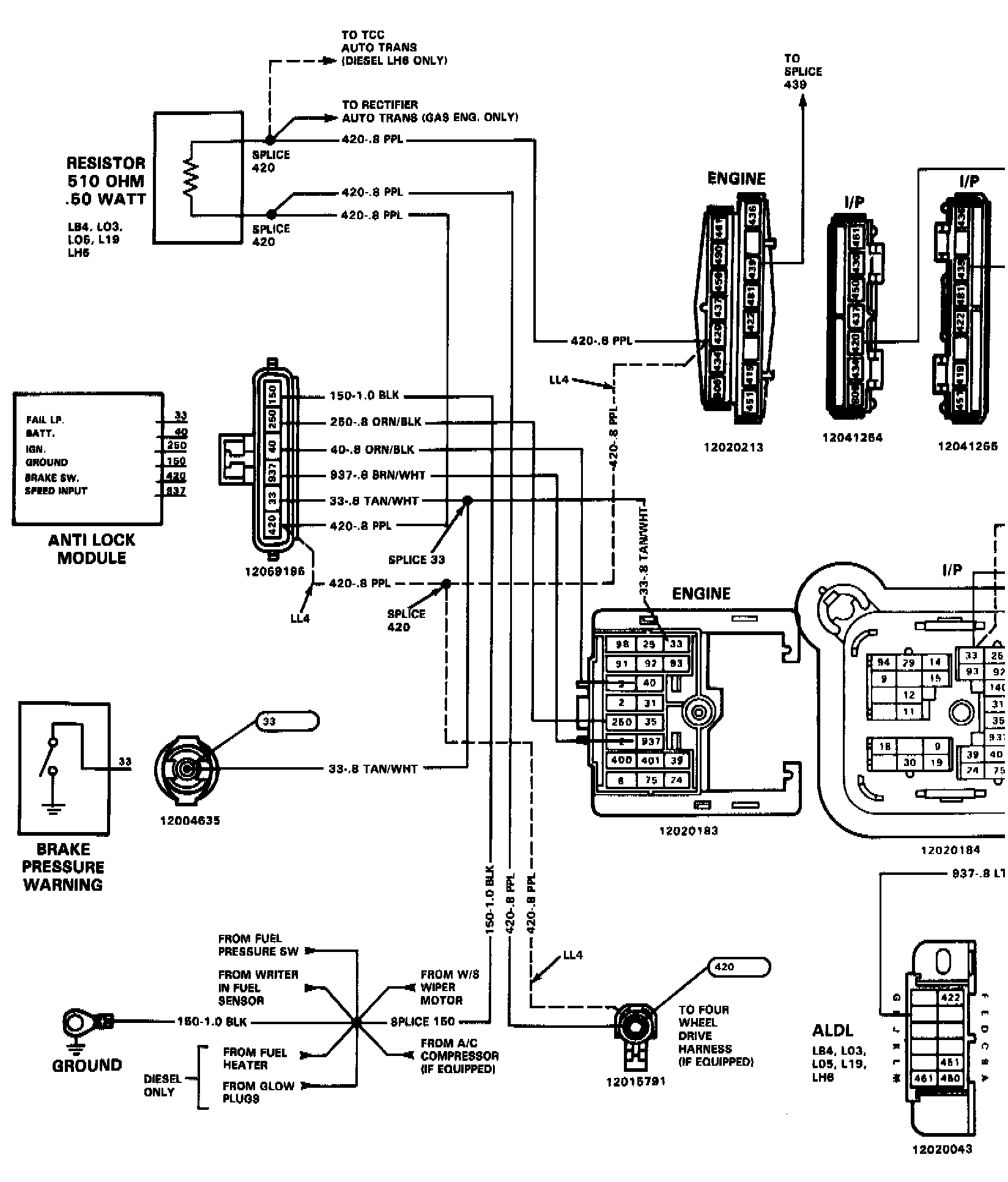

Brake (Stop) Lamp Switch
Brake (Stop) Lamp Switch
0-#:
